SEM668D
- Key Specification
- Advantage
- Application
- Rated Payload: 6,000kg
- Operating Weight with Standard Bucket: 20,117kg
- Bucket Capacity: 2.9-5.5m³
- Reliability: Sturdy frame design for heavy duty, Caterpillar design transmission and made in house axle make usage life longer
- Productivity: EH control transmission with KD and auto speed function, optimized TC and engine match 11% rimpull improved
- Fuel consumption: Optimized transmission flow and E-fan deliver lower fuel consumption
- Comfortable: Good visibility cab low noise design with first class premium 6 directions adjustable seat make comfortable operation
- Railway / Highway / Airport
- Port
- Quarry
- Municipal Construction
- Agriculture
- Water Conservancy / Hydropower
- Waste
- Coal
- Forestry
- Log Grapple
- Concrete
- Tunnel
- Iron & Steel
- Feature
- Specification
- Product Comparison
- Video
- Photo
- Download Brochure
| Model | ||
|---|---|---|
| Model | SEM668D | SEM668D for EAEU |
| Main Specifications | ||
| Rated Payload | 6,000kg | 6,000kg |
| Operating Weight with Standard Bucket | 20,117kg | 20,200kg |
| Bucket Capacity | 2.9-5.5m³ | 2.9-5.5m³ |
| Operating Specifications | ||
| Breakout Force | 197kN | 197kN |
| Max. Drawbar Force | 188kN | 188kN |
| Transmission | ||
| Transmission Gears | F4/R3 | F4/R3 |
| Torque Converter Type | Single Stage, 3 Elements | Single Stage, 3 Elements |
| Max Speed | 32km | 32km |
| Maker & Type | SEM160 | SEM160 |
| Axle (Axle, Tire & Brakes) | ||
| Rear- oscillation +/- | ±11° | ±11° |
| Engine | ||
| Engine Model | WD10G240E201 | WD10G240E201 |
| Rated Power | 178kW | 178kW |
| Rated Speed | 2,200r/min | 2,200r/min |
| Displacement | 9.7L | 9.7L |
| Emission | T2/Stage2 | T2/Stage2 |
| Implement Hydraulic System | ||
| Implement System Type | Open Center | Open Center |
| Hydraulic Cycle Time | 9.8s | 9.8s |
| System Pressure Setting | 18MPa | 18MPa |
| Raise | 5.3s | 5.3s |
| Brake System | ||
| Service Brake | Air to Oil Control | Air to Oil Control |
| Parking Brake | Drum / Shoe | Drum / Shoe |
| Service Refill Capacity | ||
| Fuel Tank | 252L | 252L |
| Engine Lubricating Oil | 21L | 21L |
| Hydraulic System | 165L | 165L |
| Transmission Oil | 45L | 45L |
| Tires | ||
| Size | 23.5-25 | 23.5-25 |
| Type | PR16 Bias | PR16 Bias |

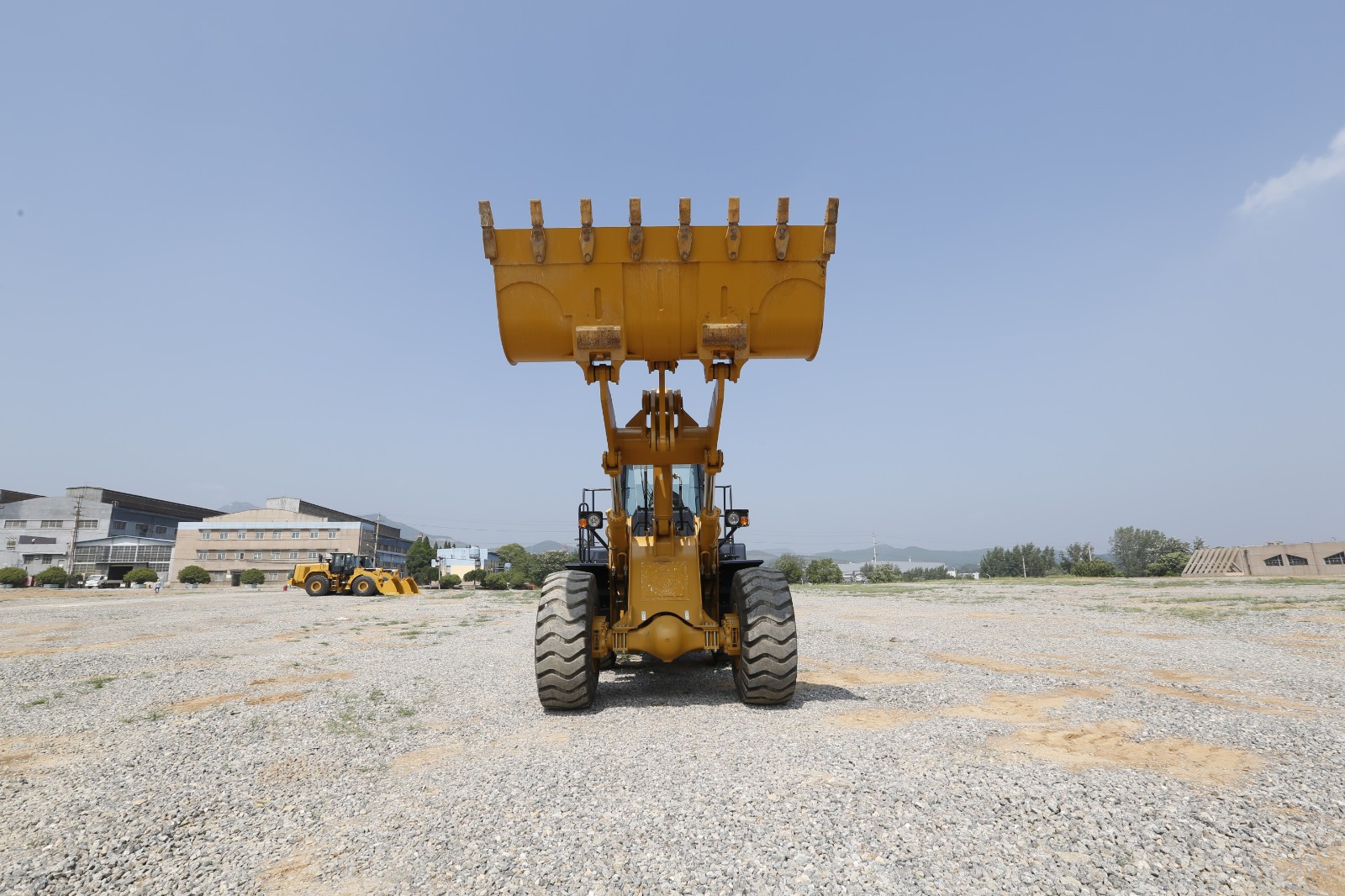

SEM668D machine styling1

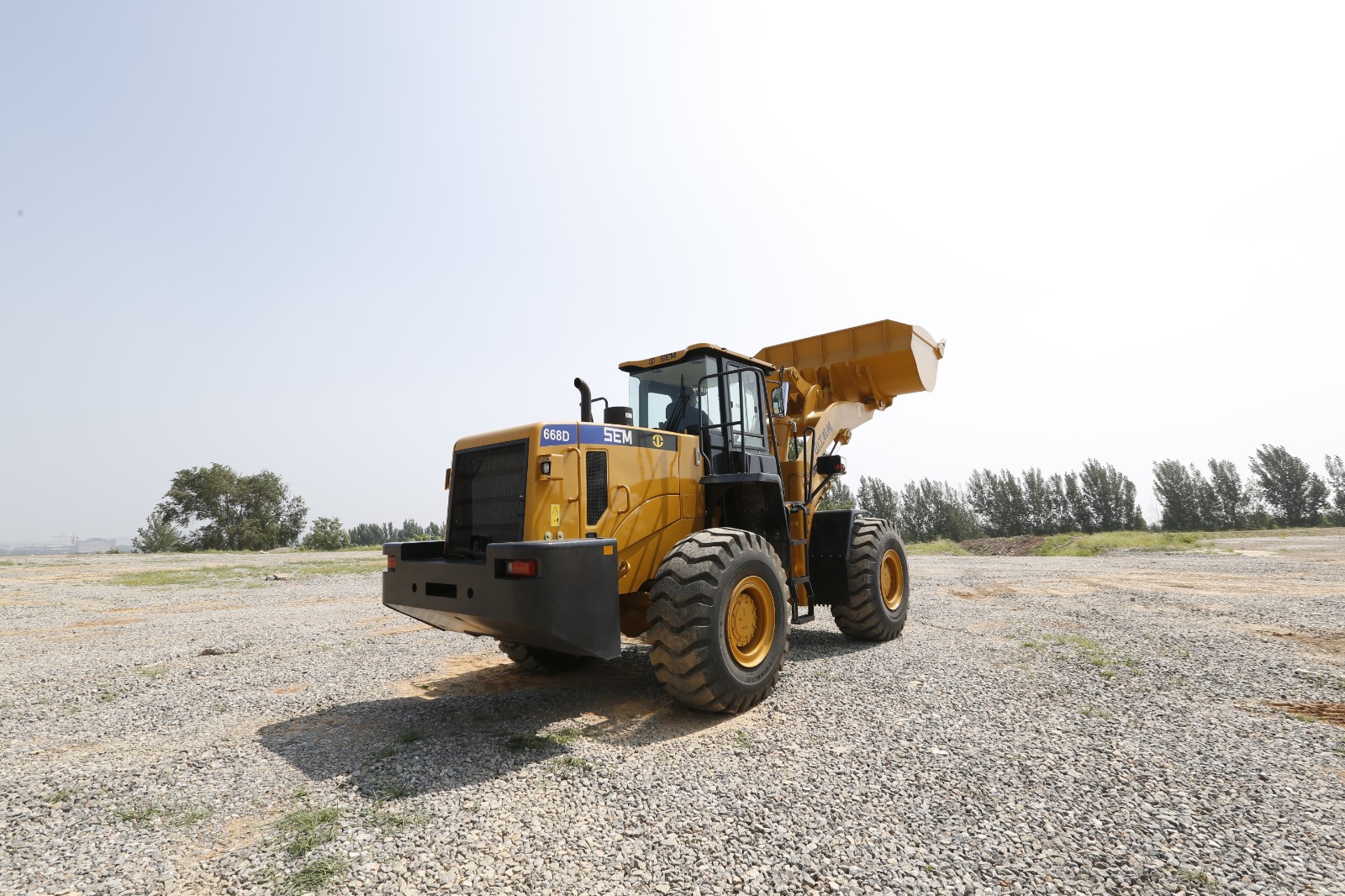

SEM668D machine styling2

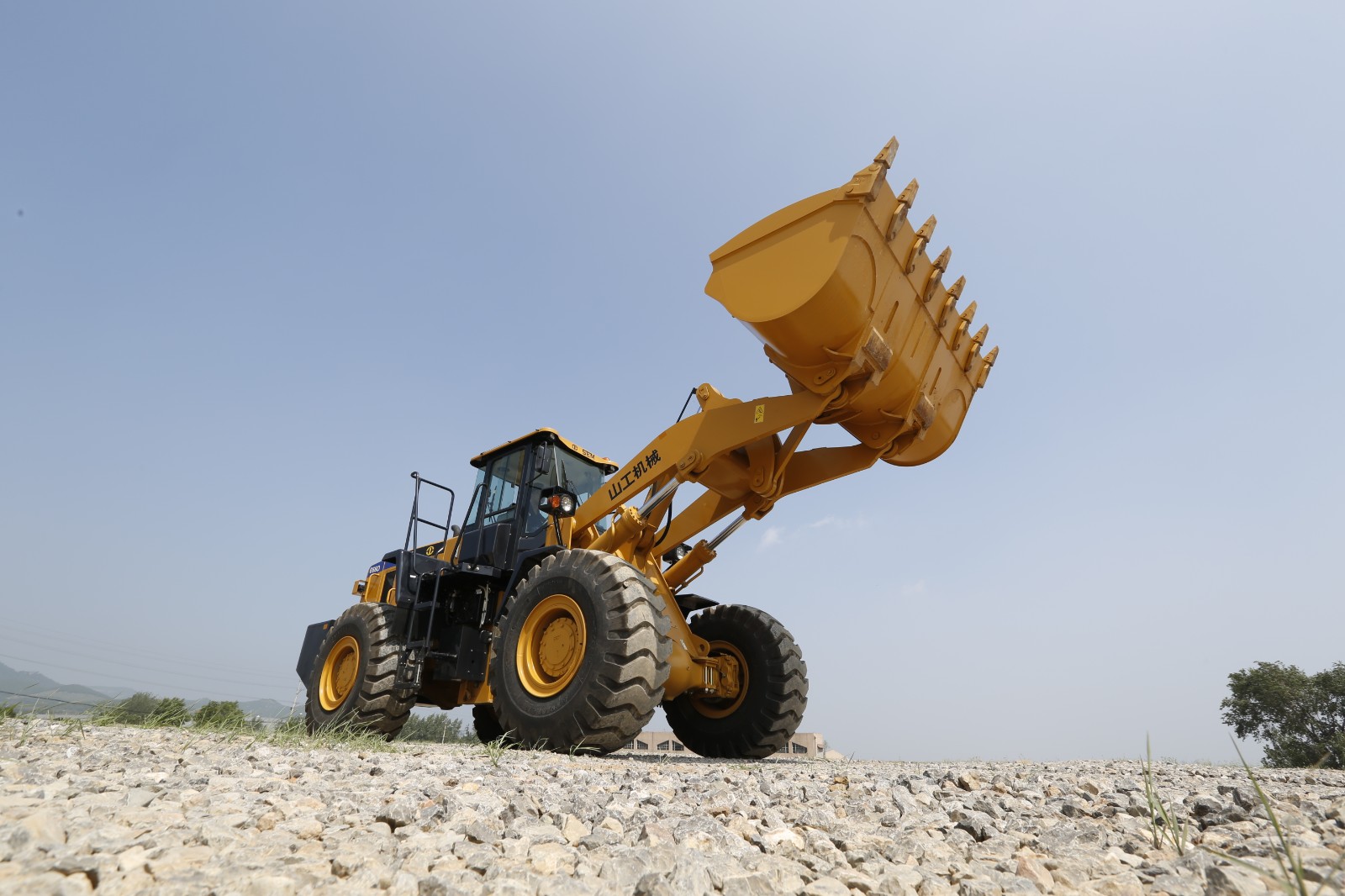

SEM668D machine styling3

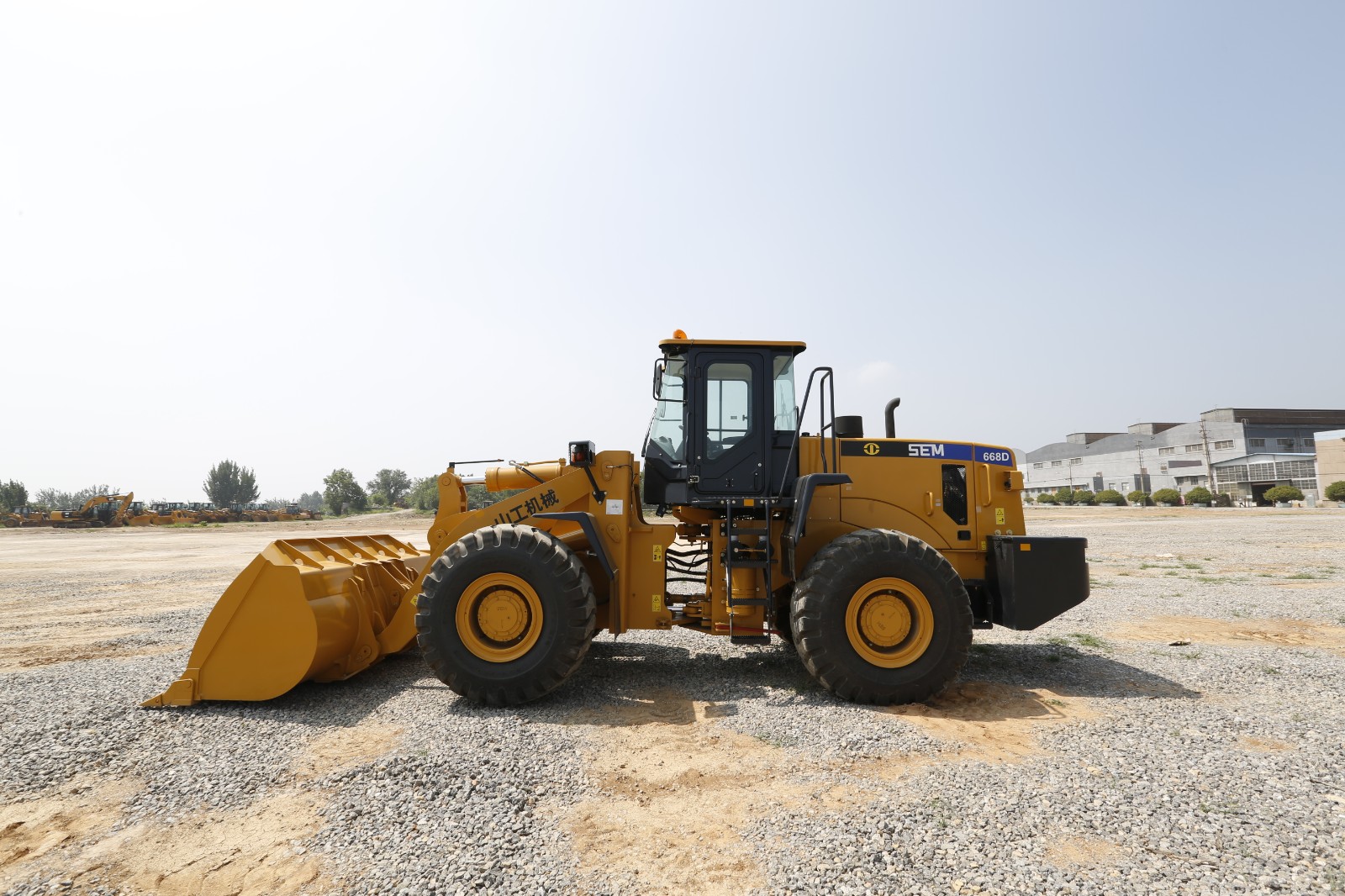

SEM668D machine styling4

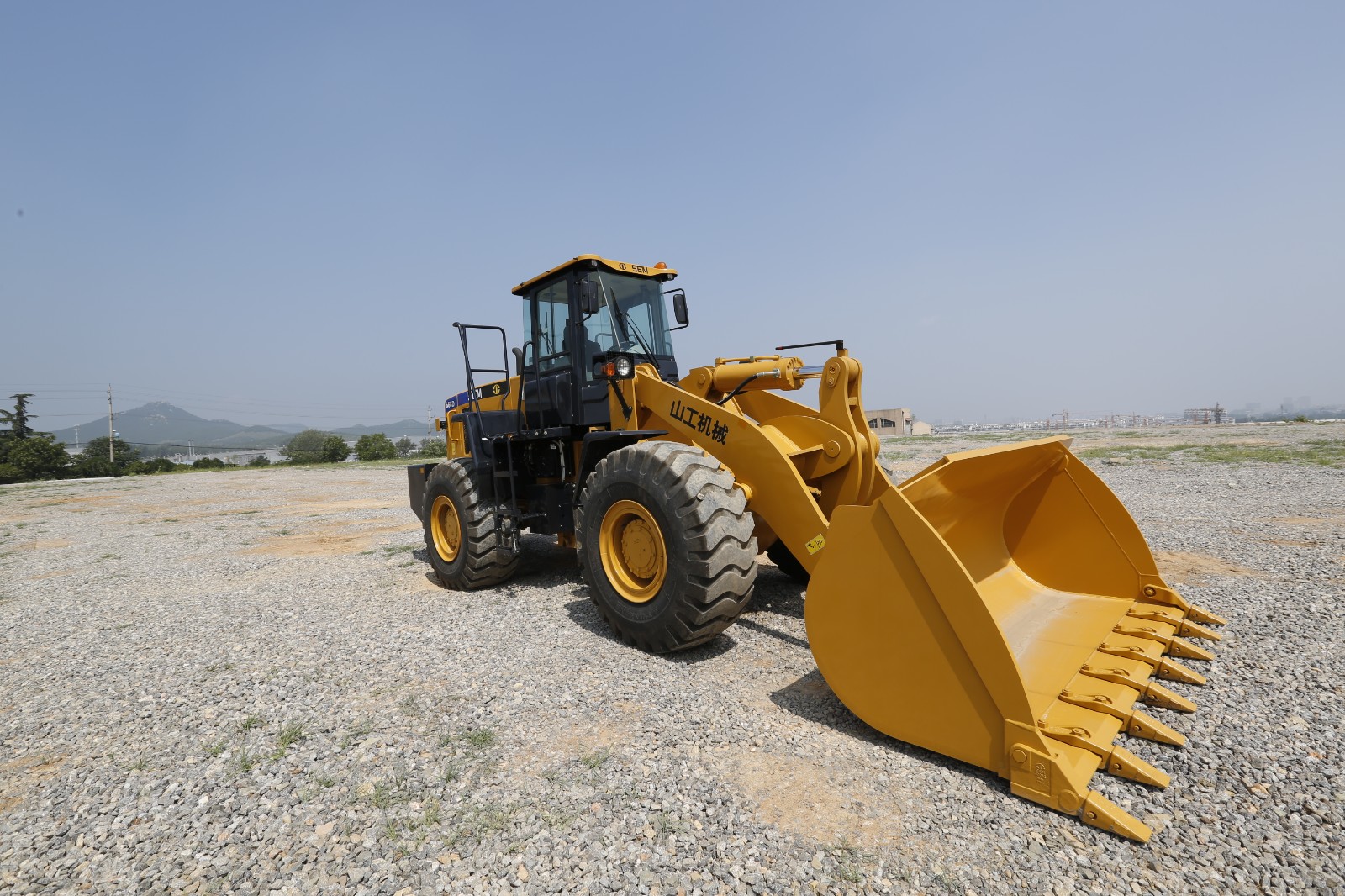

SEM668D machine styling5
