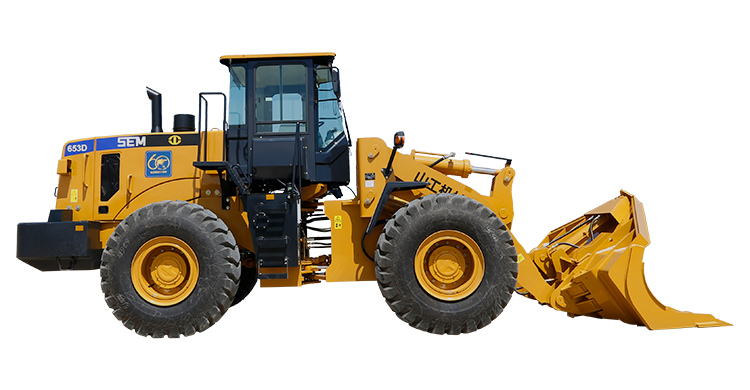

SEM653D

Reliability: Sturdy frame design for heavy duty, proved made in house transmission make usage life longer
Productivity: 1st with bigger force and 2nd gear with fast speed conjoint useage deliver high productivity. Auto to ready function save your time for operation
Fuel consumption: Low speed engine, E-fan and flow shared hydraulic system make lower fuel consumption
Comfortable: Good visibility cab and low noise design with first class premium 5 directions adjustable seat make comfortable operation

Low speed engine and E-fan make fuel consumption better
3 stage air cleaner with 93% efficiency pre cleaner reduce earlier wearing, high efficiency fuel filter make engine work in good condition
Cat technology damping mount reduce vibration failure

Excellence modulation performance implement valve with mechanical control, make operation more accurately
Full hydraulic load sensing steering and flow shared system save fuel and raise productivity, hydraulic cycle time is only 9.3s
Word class pump and Cat technology lines routing deliver better reliability

Mould formed cab with all trims design and more vents with HVAC make operator feel better
First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
Cat technology damping mount reduce vibration failure
Slide window, fresh air inlet system make environment better

SEM made in house counter shaft transmission reliable and high efficiency, core components reliable improvement
One stage and 3 element torque converter deliver higher efficiency
1st gear higher draw bar and 2nd gear faster speed make penetration easier and move material faster

High performance aluminum cooling package suitable for most of severe applications
Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
Damping design reduce vibration failure

Validated by Cat technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
Middle articulation frame less work space needed and reduce tire resistance
Large spread hitch design in acticulation section can stand more load

Quick pressure test ports on HYD and brake lines make diagnose easier
Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
Large spread hitch design in acticulation section make operator easier to approach

Slope switch make machine approach to hopper and pile in slope safety and easier
High decibel Beacon and backup alarm make person around easy to attention
3 stage alarm system on panel
3 touch points entering and exiting cab make operator more safe

Landscaping, building, sewer/water in, local construction
Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel
Highway, street, tunnel, airport, residential commercial

Model
Model	SEM653D	SEM653D for EAEU
Main Specifications
Rated Payload	5,000kg	5,000kg
Operating Weight with Standard Bucket	16,640kg	16,860kg
Bucket Capacity	2.6-5.5m³	2.6-5.5m³
Operating Specifications
Breakout Force	177KN	177KN
Max. Drawbar Force	171KN	171KN
Transmission
Transmission Gears	F4/R4	F4/R4
Torque Converter Type	Single Stage, 3 Elements	Single Stage, 3 Elements
Max Speed	39	39
Maker & Type	TR200	TR200
Axle (Axle, Tire & Brakes)
Rear- oscillation +/-	±11	±11
Engine
Engine Model	WD10G220E23	WD10G220E23
Rated Power	162kW	162kW
Rated Speed	2,000r/min	2,000r/min
Displacement	9.7L	9.7L
Emission	T2 / Stage 2	T2 / Stage 2
Implement Hydraulic System
Implement System Type	Open center	Open center
Hydraulic Cycle Time	9.3s	9.3s
System Pressure Setting	17Mpa	17Mpa
Raise	5.1s	5.1s
Brake System
Service Brake	Dry & caliper, Air to Oil Control	Dry & caliper, Air to Oil Control
Parking Brake	Drum / Shoe	Drum / Shoe
Service Refill Capacity
Fuel Tank	260L	260L
Engine Lubricating Oil	21L	21L
Hydraulic System	170L	170L
Transmission Oil	53L	53L
Tires
Size	23.5-25	23.5-25
Type	PR16 Bias	PR16 Bias

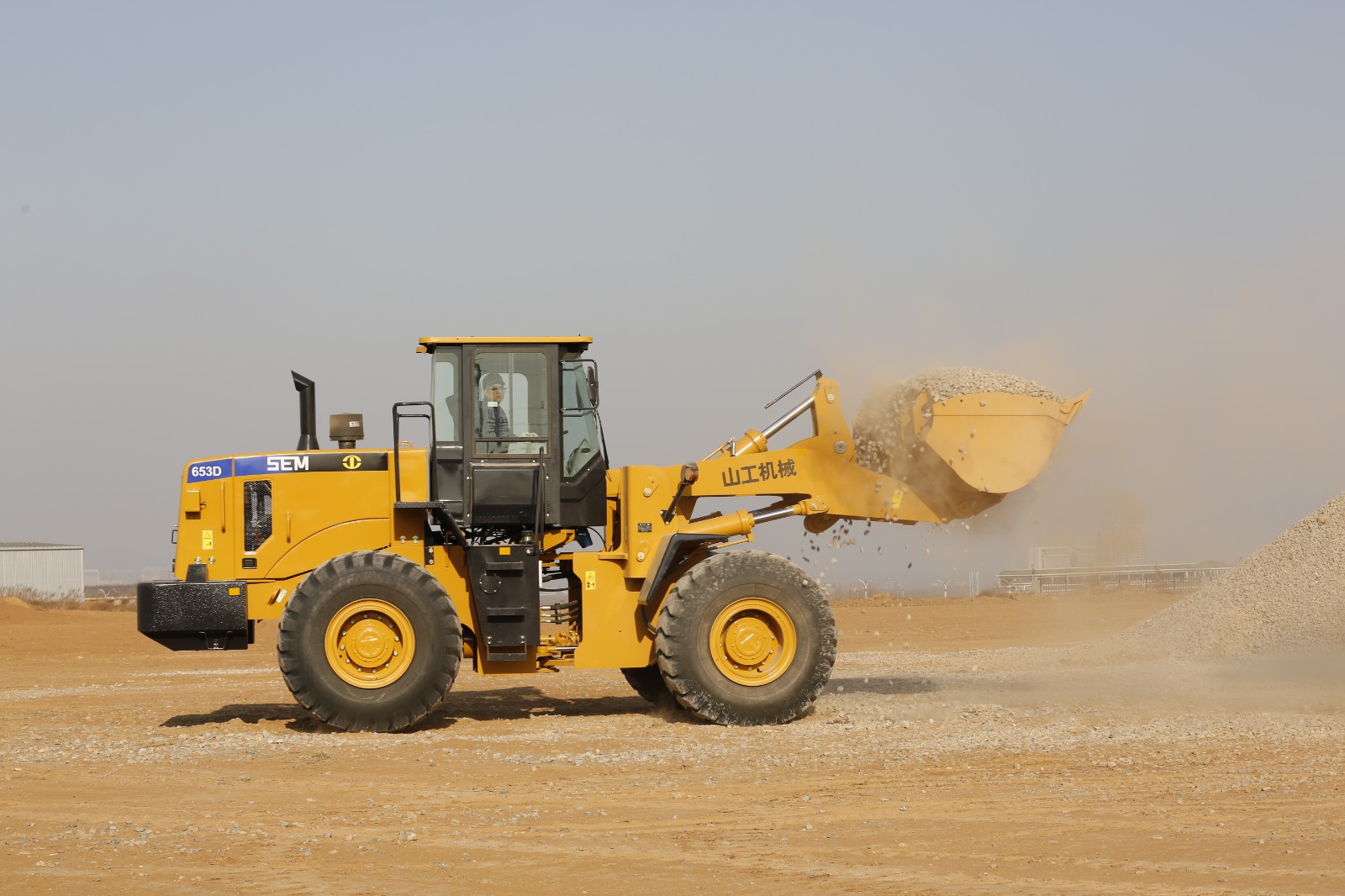

SEM653D Application_1

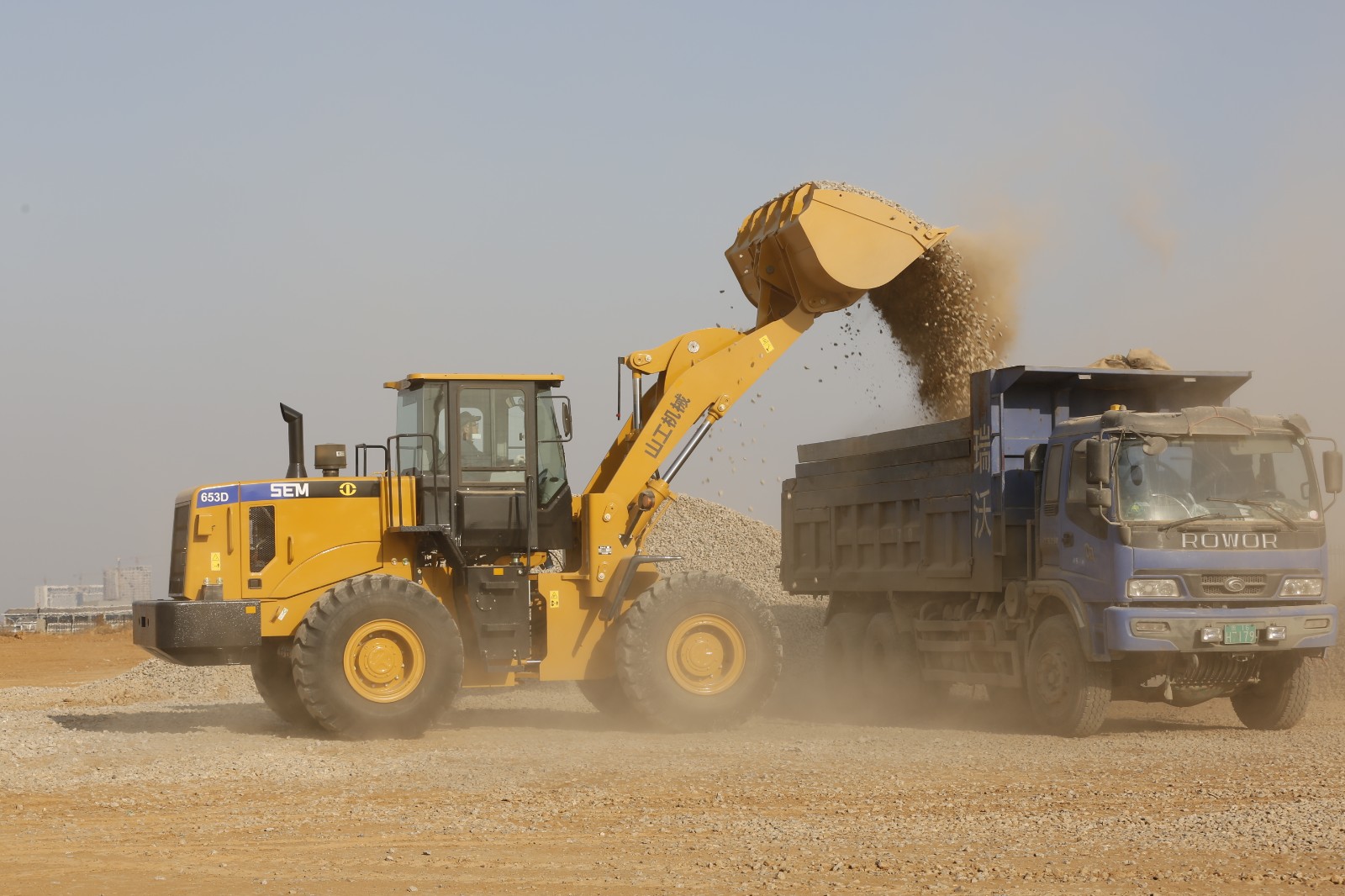

SEM653D Application_2

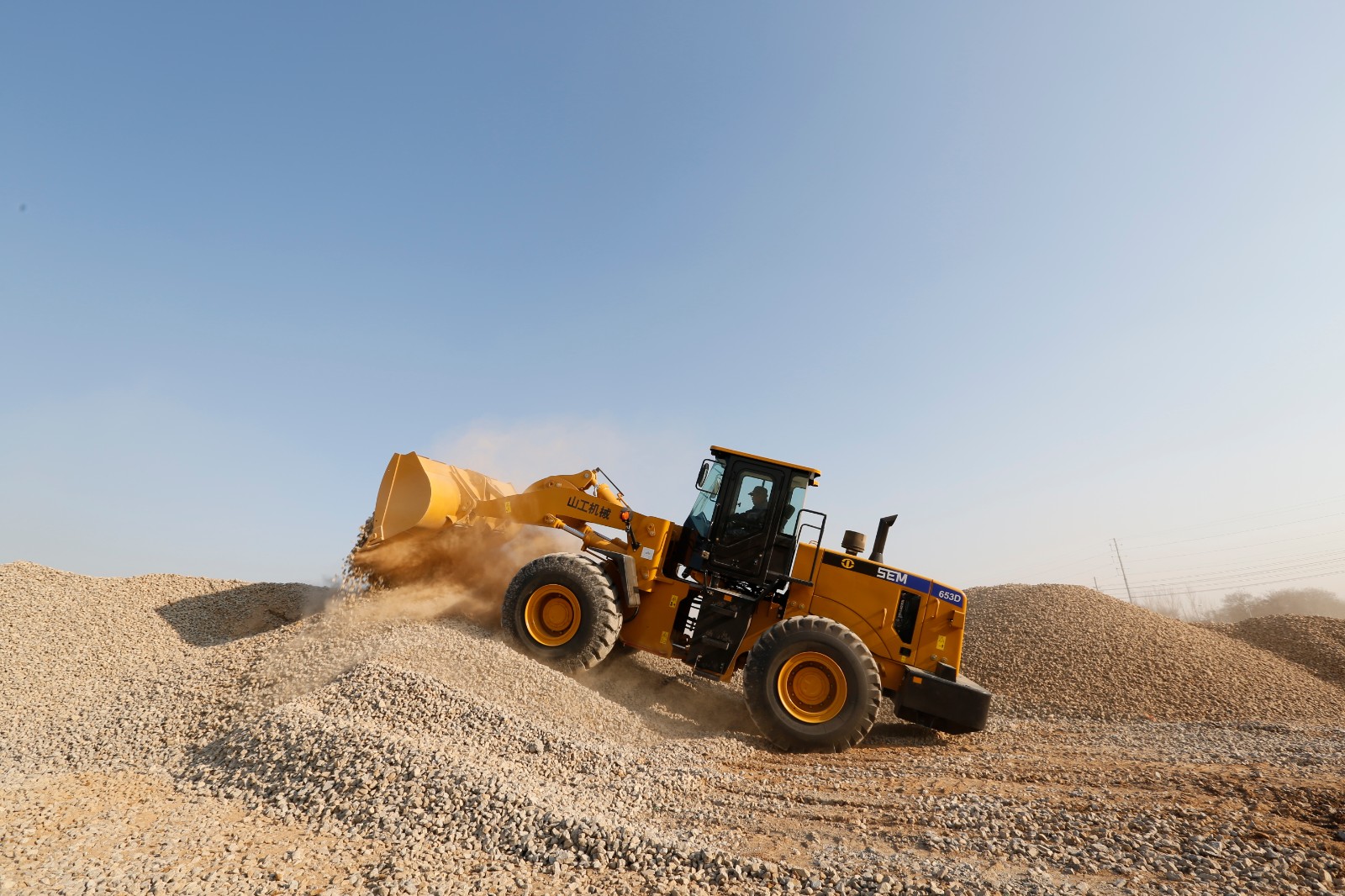

SEM653D Application_3

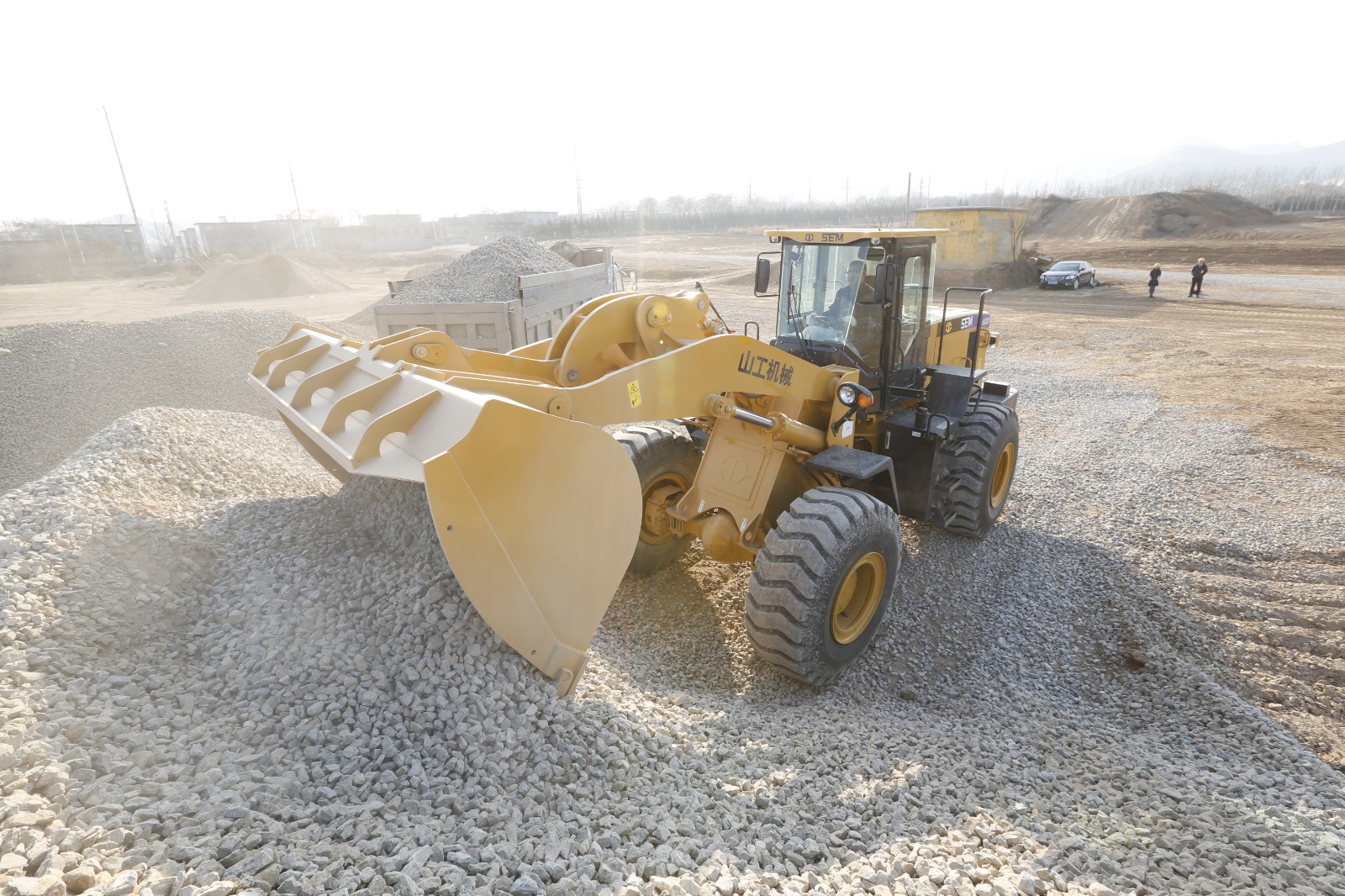

SEM653D Application_4

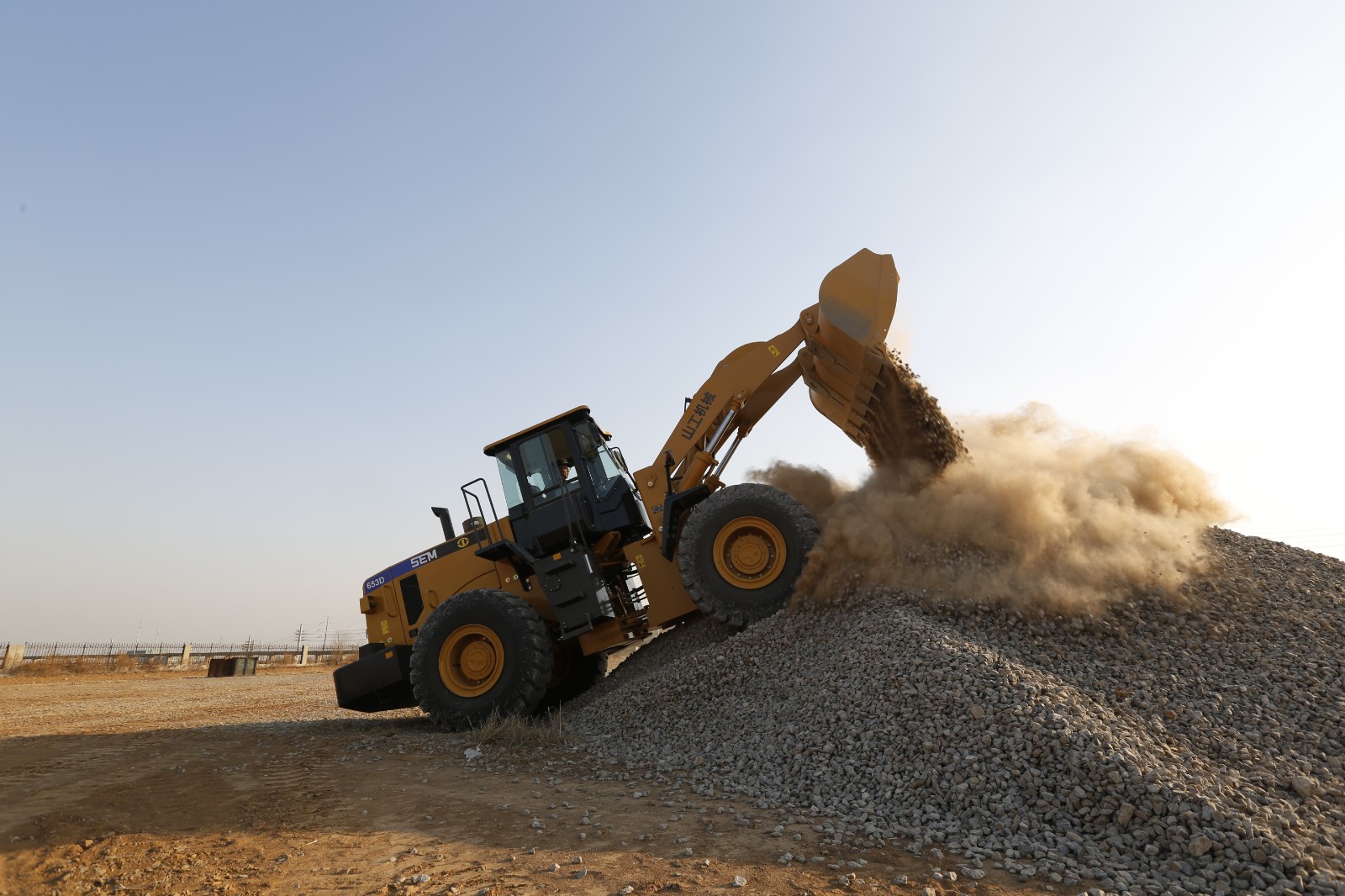

SEM653D Application_5

SEM653D Application_6
