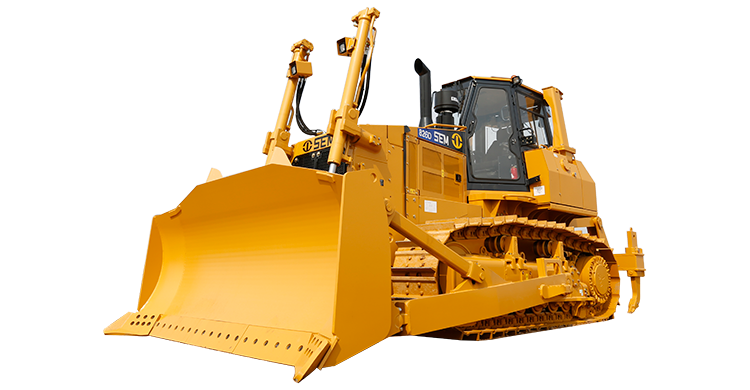

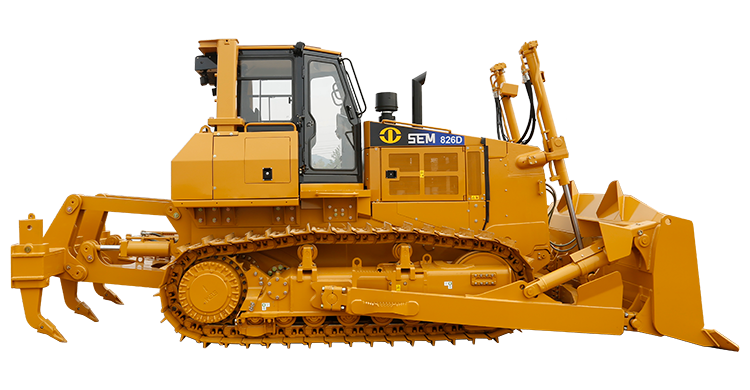

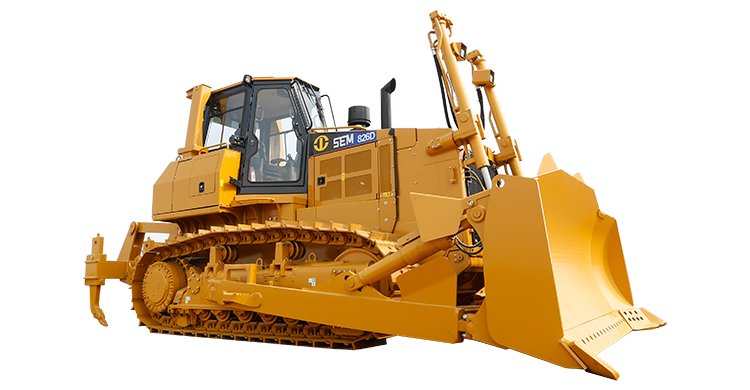

SEM826D

Key Specification
Advantage

Operating Weight: 24,000kg
Ground Pressure: 71.2kPa
Ground Clearance: 400mm

High Performance: Fully Hydrostatic drive which inherited from Caterpillar technology, load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.
Comfortable Operation: More comfortable operation with large space cab and good maneuverability with multiple functional electrical lever.
High Reliability: More reliable core components with world class pump and motor and reinforced strcutures by FEA analysis.
Low Operation Cost: Good serviceability and low maintenance cost without converter, transimission

Feature
Specification
Download

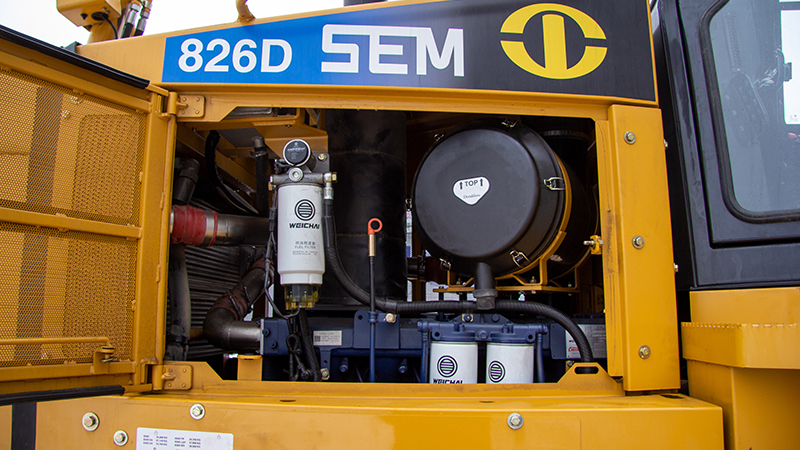

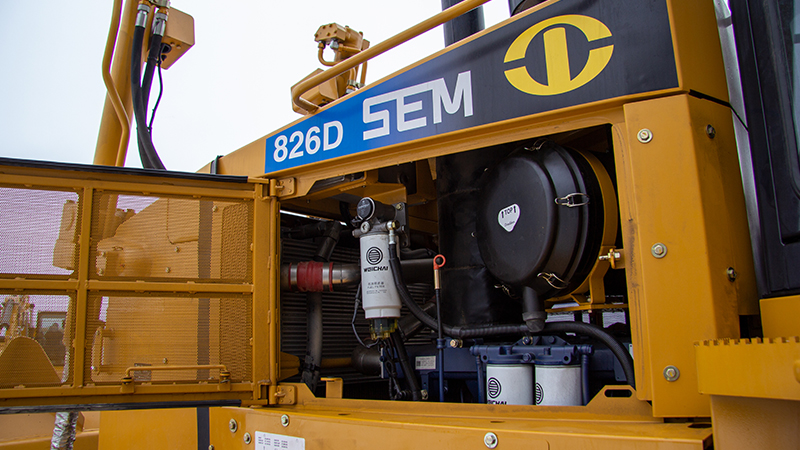

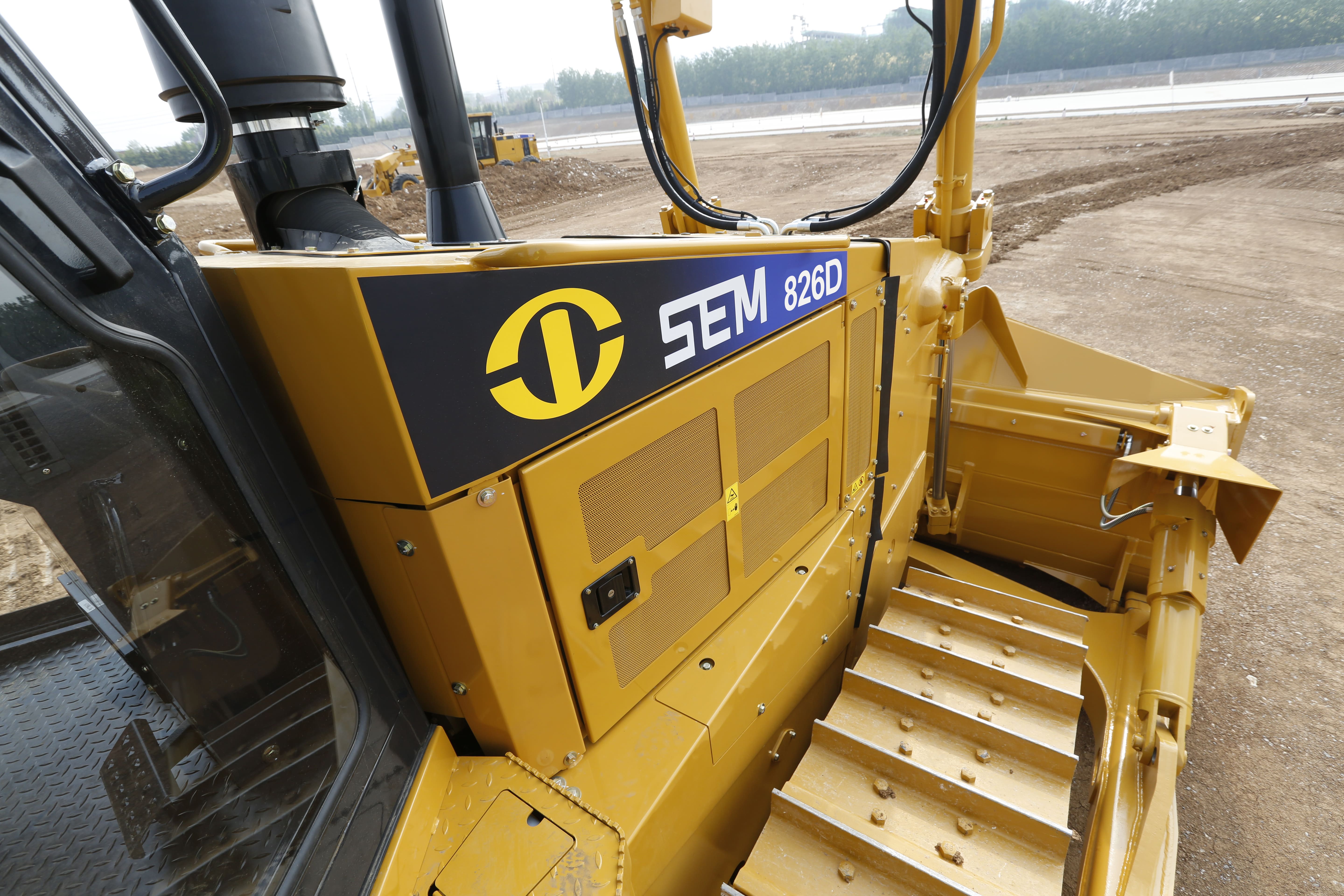

Engine

High power electronically controlled engine helps to increase SEM826D productivity by 15%.

There are three power modes:

a) Economy mode (242 hp) for fuel economy and light duty applications such as downhill material handling and surface leveling

b) Standard duty (270 hp) for general applications such as construction site and forestry

c) Full power mode (294 hp) for maximum productivity and moving large volumes of heavy material, including uphill

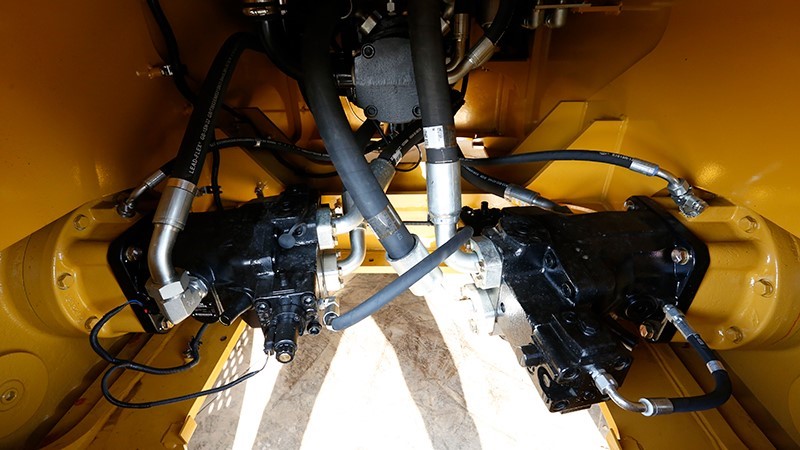

Hydrostatic Drive System

Upgraded hydrostatic system not only leverages Caterpillar automatic, dual path, hydro-static drive with electronic control technology of the third generation TTT, but also increas-es efficiency and reliability
Adopt Rexroth German new generation drive pump to combine control valve, trackmotor, simplified hose line design, continue to increase the reliability
Caterpillar high pressure hose provides reliability and durability. Caterpillar control technology provides accurate control and high transmission efficiency
Integrated the hydrostatic oil tank and implement hydraulic oil tank to improve filtratedprecision and cooling capability of hydraulic system, increasing reliability and reducingmaintenance cost
Maintenance costs are reduced by 60% when compared competitors with torque converter and transmission and rear axle
Counter rotation, power turn and infinitely variable speed save lots of time, increasing working efficiency

Comfortable Operation

Counter rotation — Tracks counter rotate to provide best in class maneuverability
Powered turn — Machine maintains full power through turns to increase productivity
Cruise control — Operators can retain previous speed settings which makes operation easily
Multi-function joystick allows for counter-rotation, powered turn and cruise control
Pilot joystick control provides comfortable precise blade operation

Semi-Universal Blade

SU blade combines the excellent penetration of the S blade and the high production capacity of the U blade
Designed for superior load retention and penetration in tightly packed materials
L-shaped push arms bring the blade closer to the machine, providing excellent maneuverability, balance and blade penetration
Blades feature a strong box section design, made from high tensile strength steel to stand up to the most severe applications

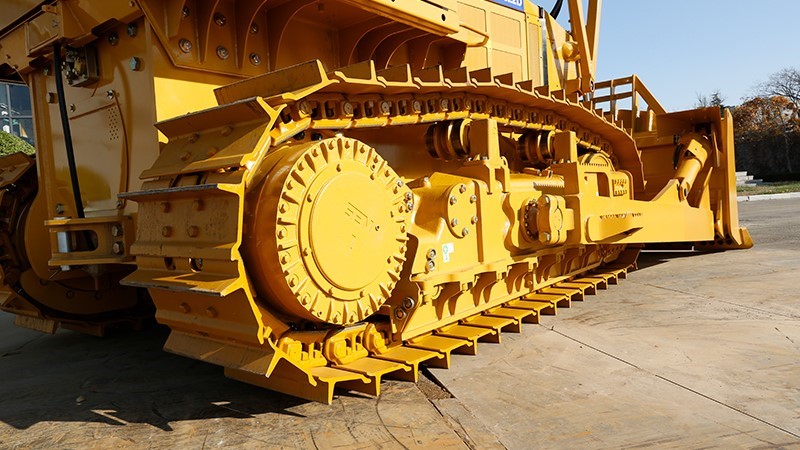

Undercarriage

Undercarriage is provided by China industry expert ensures high reliability and resistance to wear
Carrier rollers track rollers and idle rollers are all maintenance free
Planetary final drive design delivers increased torque ratio for higher transmission efficiency and lower maintenance cost
Durable final drive bearings and multiple wet discbrakes provide reliability, reduce system heat and extend overall life

Structures

Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and protect high stress areas
Advanced structure welding technique, relieving welding stress.

Modular Radiator

New advanced cooling system designed to meet -40°C to +50°C ambient temperatures capability
Modular designed radiator, easy to maintain remove and repair
Radiator grill provides better heatdissipation, easy access or maintenance

Maintenance

Electronic Control Module (ECM) fault diagnosis system,automatic diagnosis of eight key parameters
Monitoring system provides three levels of alarm,to indicate fault diagnosis
Hydrostatic system has longer service interval (2000 hrs),reduces maintenance time by 50%
Implement valve mounted outside of hydraulic tank provides easy access to check and service

Cat ® Product Link™

Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management

Model
Model	SEM826D	SEM826D LGP	SEM826D CH	SEM826D WH	SEM826D FR
Main Specifications
Operating Weight	24,760kg	28,402kg	25,064kg	28,560kg	25,998kg
Ground Pressure	73.5kPa	43.8kPa	63.1kPa	43.8kPa	77.2kPa
Ground Clearance	400mm	400mm	400mm	400mm	400mm
Max. Slope	30°	30°	30°	30°	30°
Max. drawbar pull	350kN	350kN	350kN	350kN	350kN
Engine
Engine Model	WeiChai WP12G290E301	WeiChai WP12G290E301	WeiChai WP12G290E301	WeiChai WP12G290E301	WeiChai WP12G290E301
Emission (GB/T20891-2014)	China Stage III	China Stage III	China Stage III	China Stage III	China Stage III
Type	Diesel- water cooled, Injection direct, In-line, 4-Stroke, Turbocharged, Electronic Control	Diesel- water cooled, Injection direct, In-line, 4-Stroke, Turbocharged, Electronic Control	Diesel- water cooled, Injection direct, In-line, 4-Stroke, Turbocharged, Electronic Control	Diesel- water cooled, Injection direct, In-line, 4-Stroke, Turbocharged, Electronic Control	Diesel- water cooled, Injection direct, In-line, 4-Stroke, Turbocharged, Electronic Control
Gross Power (ISO 2534)	216kW/289hp	216kW/289hp	216kW/289hp	216kW/289hp	216kW/289hp
Net Power (ISO 9249)	191kW/256hp	191kW/256hp	191kW/256hp	191kW/256hp	191kW/256hp
Max. Net Power (ISO 9249)	208kW/278hp	208kW/278hp	208kW/278hp	208kW/278hp	208kW/278hp
Rated Speed	2,200r/min	2,200r/min	2,200r/min	2,200r/min	2,200r/min
Max. Altitude at Full Power	2,000m	2,000m	2,000m	2,000m	2,000m
Working Tool
Blade Type	SU/S	S - LGP	U/Coal	S - WH	SU w/ Rack
Blade Capacity (ISO 9246)	6.4m³/5.8m³	5.5m³	7.5m³/9.2m³	12.7m³	8.7m³
Blade Width（w/end bit）	3,660mm/3,800mm	4,510mm	3,900mm	4,510mm	3,660mm
Blade Height	1,520mm/1,510mm	1,350mm	1,420mm/1,620mm	1,945mm	1,830mm
Max. Blade Digging Depth	570mm	665mm	570mm	665mm	570mm
Max.Blade Lift Ground Clearance	1,140mm	1,165mm	1,140mm	1,165mm	1,140mm
Blade Tilt Height (middle hole)	520mm	640mm	550mm	640mm	520mm
Powertrain
Type	Dual-path, closed loop electronically controlled hydrostatic drive system	Dual-path, closed loop electronically controlled hydrostatic drive system	Dual-path, closed loop electronically controlled hydrostatic drive system	Dual-path, closed loop electronically controlled hydrostatic drive system	Dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R	Infinitely variable speeds 0-10km/h	Infinitely variable speeds 0-10km/h	Infinitely variable speeds 0-10km/h	Infinitely variable speeds 0-10km/h	Infinitely variable speeds 0-10km/h
Steering & Brake	Hydrostatic steering; wet,multi-disc brake,Bellville spring actuated and hydraulically released	Hydrostatic steering; wet,multi-disc brake,Bellville spring actuated and hydraulically released	Hydrostatic steering; wet,multi-disc brake,Bellville spring actuated and hydraulically released	Hydrostatic steering; wet,multi-disc brake,Bellville spring actuated and hydraulically released	Hydrostatic steering; wet,multi-disc brake,Bellville spring actuated and hydraulically released
Final drive	Double reduction, combination spur gear, planetary gear	Double reduction, combination spur gear, planetary gear	Double reduction, combination spur gear, planetary gear	Double reduction, combination spur gear, planetary gear	Double reduction, combination spur gear, planetary gear
Minimum Streeing Radius	4,215mm	4,300mm	4,500mm	4,300mm	4,215mm
Undercarriage
Type	Oval Track, One piece TRF,Pinned Oscillating equalizer bar with rubber pad, pivot shaft	Oval Track, One piece TRF,Pinned Oscillating equalizer bar with rubber pad, pivot shaft	Oval Track, One piece TRF,Pinned Oscillating equalizer bar with rubber pad, pivot shaft	Oval Track, One piece TRF,Pinned Oscillating equalizer bar with rubber pad, pivot shaft	Oval Track, One piece TRF,Pinned Oscillating equalizer bar with rubber pad, pivot shaft
Link Pitch	216mm	216mm	216mm	216mm	216mm
Track Shoe Width	560mm	910mm/915mm	660mm	915mm	560mm/660mm
Track Shoe Type	Single Grouser	APEX / Single Grouser	Single Grouser	Single Grouser	Single Grouser
Track Shoe Quantity (Each side)	40	45	40	45	40
Length of Track on Ground	2,948mm	3,488mm	2,948mm	3,488mm	2,948mm
Track Gauge	2,000mm	2,340mm	2,000mm	2,340mm	2,000mm
Track Roller Quantity (Each side)	7	8	7	8	7
Carrier Roller Quantity (Each side)	2	2	2	2	2
Hydraulic System
Type	Center close, Pilot control	Center close, Pilot control	Center close, Pilot control	Center close, Pilot control	Center close, Pilot control
Implement Hydraulic System Pressure	19MPa	19MPa	19MPa	19MPa	19MPa
Multi Shank Ripper
Type	Parallelogram	/	Parallelogram	/	Parallelogram
Max. Penetration (Top hole)	860mm	/	860mm	/	860mm
Max. Clearance Under Tip (Bottom hole)	640mm	/	640mm	/	640mm
Climbing angle	26.4degree	/	26.4degree	/	26.4degree
Weight	2,210kg	/	2,210kg	/	2,210kg
Single Shank Ripper
Type	Parallelogram	/	Parallelogram	/	Parallelogram
Max. Penetration (Top hole)	737mm	/	737mm	/	737mm
Max. Clearance Under Tip (Bottom hole)	742mm	/	742mm	/	742mm
Climbing angle	28.8degree	/	28.8degree	/	28.8degree
Shank back	10degree	/	10degree	/	10degree
Shank forward	15degree	/	15degree	/	15degree
Weight	1,800kg	/	1,800kg	/	1,800kg
Service Refil Capacities
Fuel	460L	460L	460L	460L	460L
Cooling System	45L	45L	45L	45L	45L
Pivot Shaft Case(each side)	0.8L	0.8L	0.8L	0.8L	0.8L
Final drive	40L	45L	45L	45L	40L
Hydrostatic/Implement oil	160L	160L	160L	160L	160L

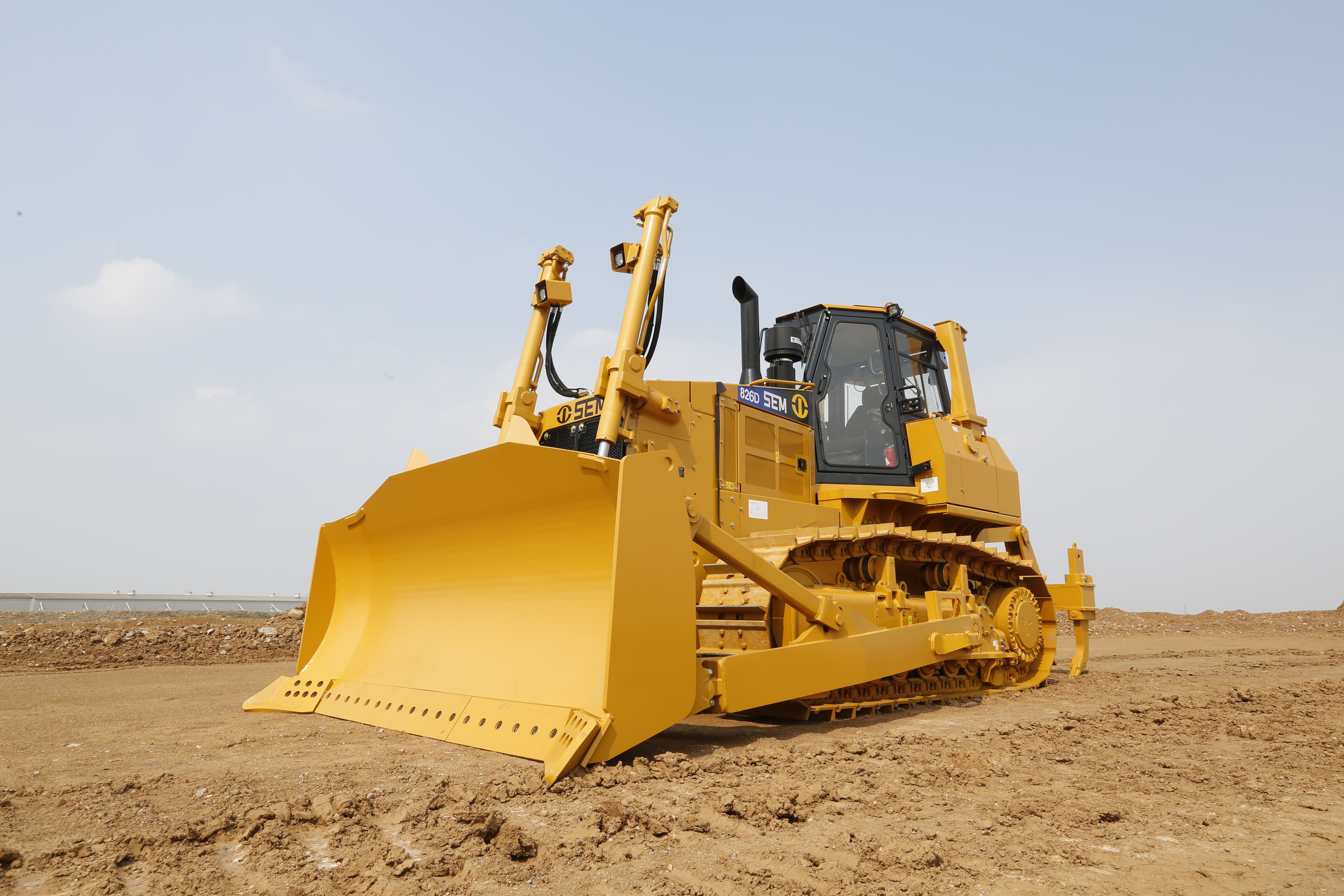

SEM826D-machine1
