Engine
- Weichai WP4 engine with turbo charger and ATAAC
- High fuel efficiency
- HOME
- PRODUCTS
- Soil Compactor
- SEM510
Product Comparison
Download Brochure

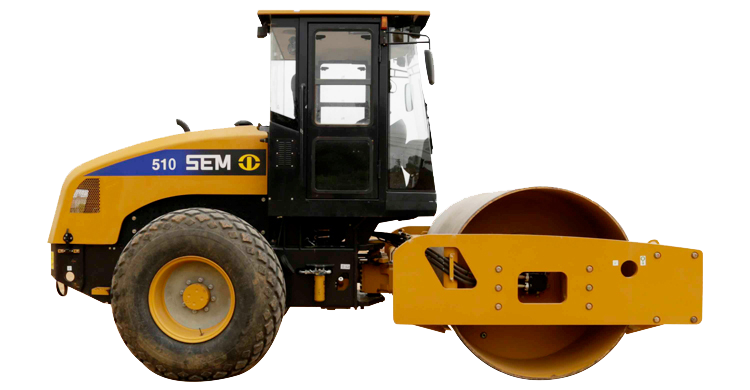

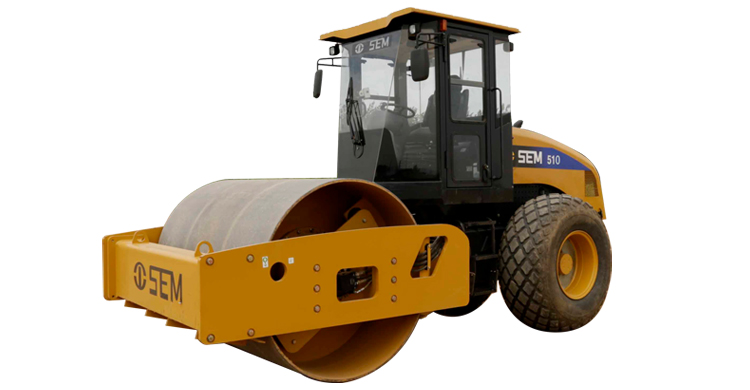

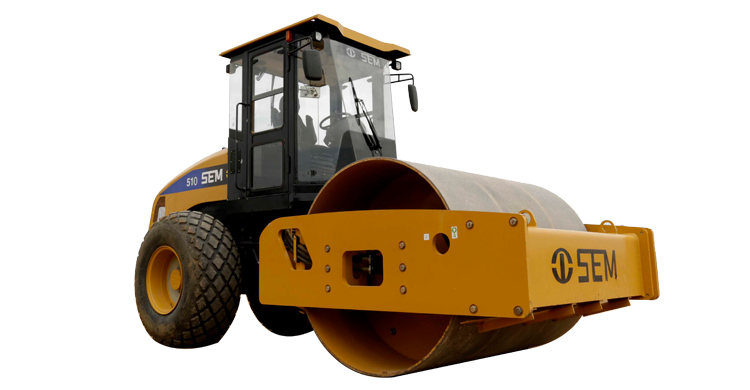

SEM510
- Key Specification
- Advantage
- Application
- Std Rated Power-Gross: 97.5kW
- Rated Speed: 2,200r/min
- Turning Outer Radius: 5,990mm
- High Reliability: Hydrostatic drive system with world class variable displacement piston pump and motors delivers leading in class reliability
- High Productivity: Dual amplitude and frequency vibration system enable the operator to achieve better compaction result
- High Efficiency: Up to 45% grade ability allows the machine to work efficiently on slop and uneven terrains
- Railway / Highway / Airport
- Municipal Construction
- Agriculture
- Water Conservancy / Hydropower
- Waste
- Feature
- Specification
- Product Comparison
- Video
- Photo
- Download Brochure
Drive Train
- Hydrostatics drive with rear axle and drum drive
- High performance coupler
- Heavy duty rear axle with limited slip differential
Vibration System
- Pod-style eccentric design
- Dual amplitude and frequency with world class piston pump and motor
Cat ® Product LinkTM
- Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Hydraulic System
- Improves efficiency by 20% vs. open center system
- Reduces oil contamination, extends life of hydraulic system
- Maintains higher system pressure with less energy loss
- Allows for simpler hose routings
- Requires smaller volume hydraulic tank, reduces maintenance cost
Cooling System
- Modular cooling package design
- Up to 49°C ambient temperature cooling capacity
Key Applications
SEM510 and SEM512 SCOM are widely used in road work, sub-base, parking lots, site development, water and sewer trench work, hills and uneven terrain
Cab & Operation System
- Canopy standard, Cabin + A/C optional
- Big room, superior front, side and rear visibility
- SEM512/510 is hydrostatic compactor. The operation system is very simple, it just has two control levers, one for throttle control, another one is for forward/backward and brake control
- A/C with interior cycle/out side fresh air cycle selection for better defog capability
- Safety belt is standard
Optional Accessories
- Soft CAB+AC
- Compaction Meter
- Cold Start (Air Inlet Heater, -20°c)
- Rear Rain Wiper (Cab Only)
- Radio (AM, FM) (Cab Only)
- Pad Foot Shell Kit
| Model | |
|---|---|
| Model | SEM510 |
| Engine Specification | |
| Emission | China StageII |
| Std Rated Power-Gross | 97.5kW |
| Rated Speed | 2,200r/min |
| Composite Work Cycle Fuel Consumption (l/hour) | 560/1,400-1,600N.m/rpm |
| Ambient Capability-HA Sea Level | 49Deg C |
| Ambient Capability-Cold Weather | -10Deg C |
| Operating Specifications | |
| Machine Mass w/Std Config | 10,170 kg / 10,380 kg (with ROPS) ±3% |
| Weight at Drum w/Std Config | 5,900+3%kg |
| Weight on Rear Axle | 4,100kg |
| Static Linear Load | 271N/cm |
| Max. Grade Ability w/o vibbration | 45% |
| Articulated Angle | 33±1° |
| Turning Outer Radius | 5,990mm |
| Compaction Width | 2,130mm |
| Travel Speed | |
| Lo Range | 0 to 5.5km/h |
| Hi Range | 0 to 12km/h |
| Hydraulic Cycle Time | |
| Full Turn Time | 6±0.5s |
| Vibratory System | |
| Freqency-Hi/Lo | 33/30HZ |
| Amplitude-Hi/Lo | 1.80/0.90mm |
| Centrifugal Force-Hi/Lo | 215/130kN |
| Dimensions | |
| Machine Dimensions[L*W*H] | 5,815*2,290*3,130mm |
| Oscillation Angle | 10±1° |
| Wheelbase | 2,900mm |
| Tread Width | 1,600mm |
| Drum Width | 2,130mm |
| Drum Diameter | 1,590mm |
| Tire Specs | |
| Tire Specs | 23.1-26 12PR12 |
| Tire Pressure Setting | 0.35Mpa |

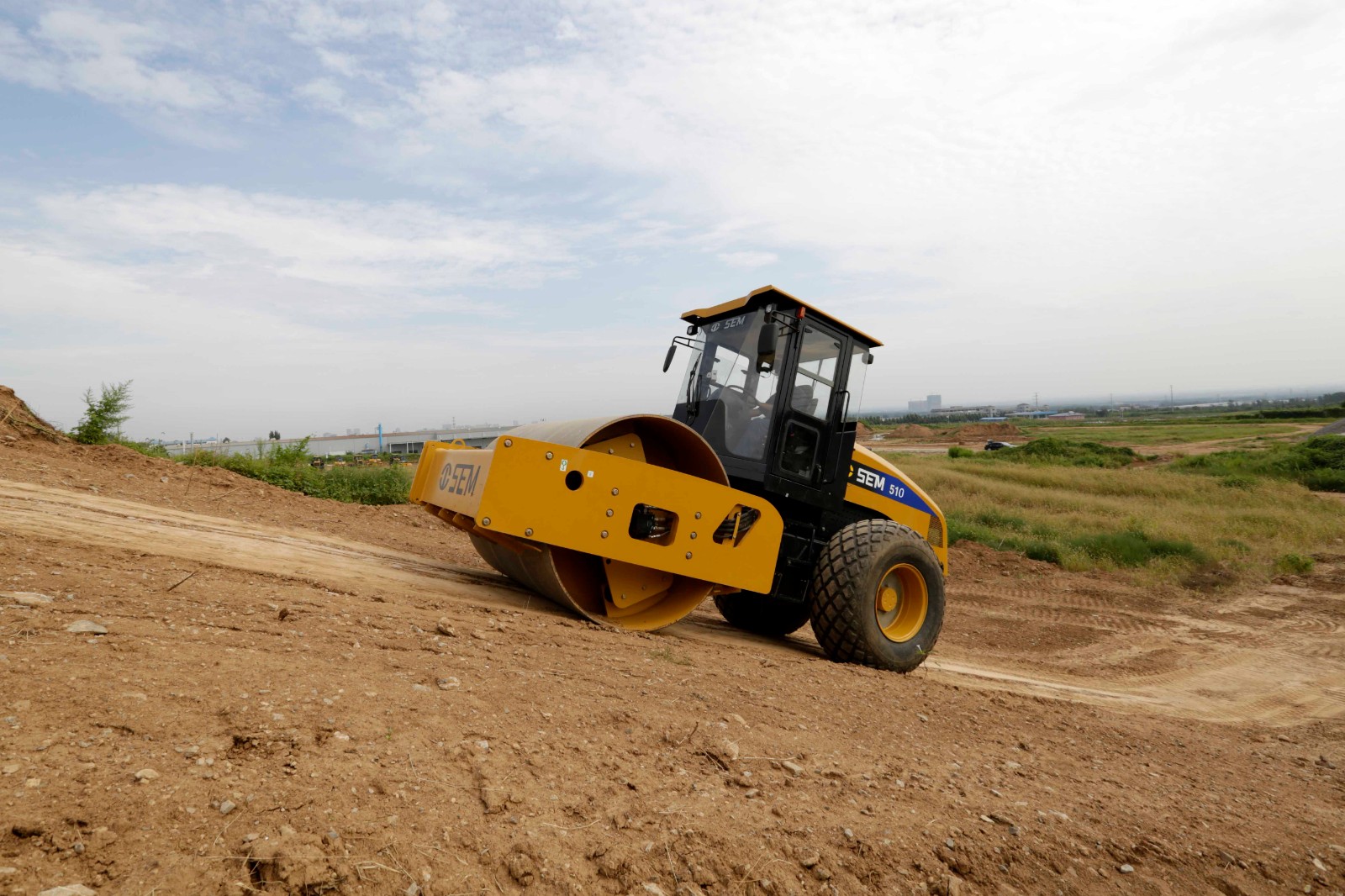

SEM510_1

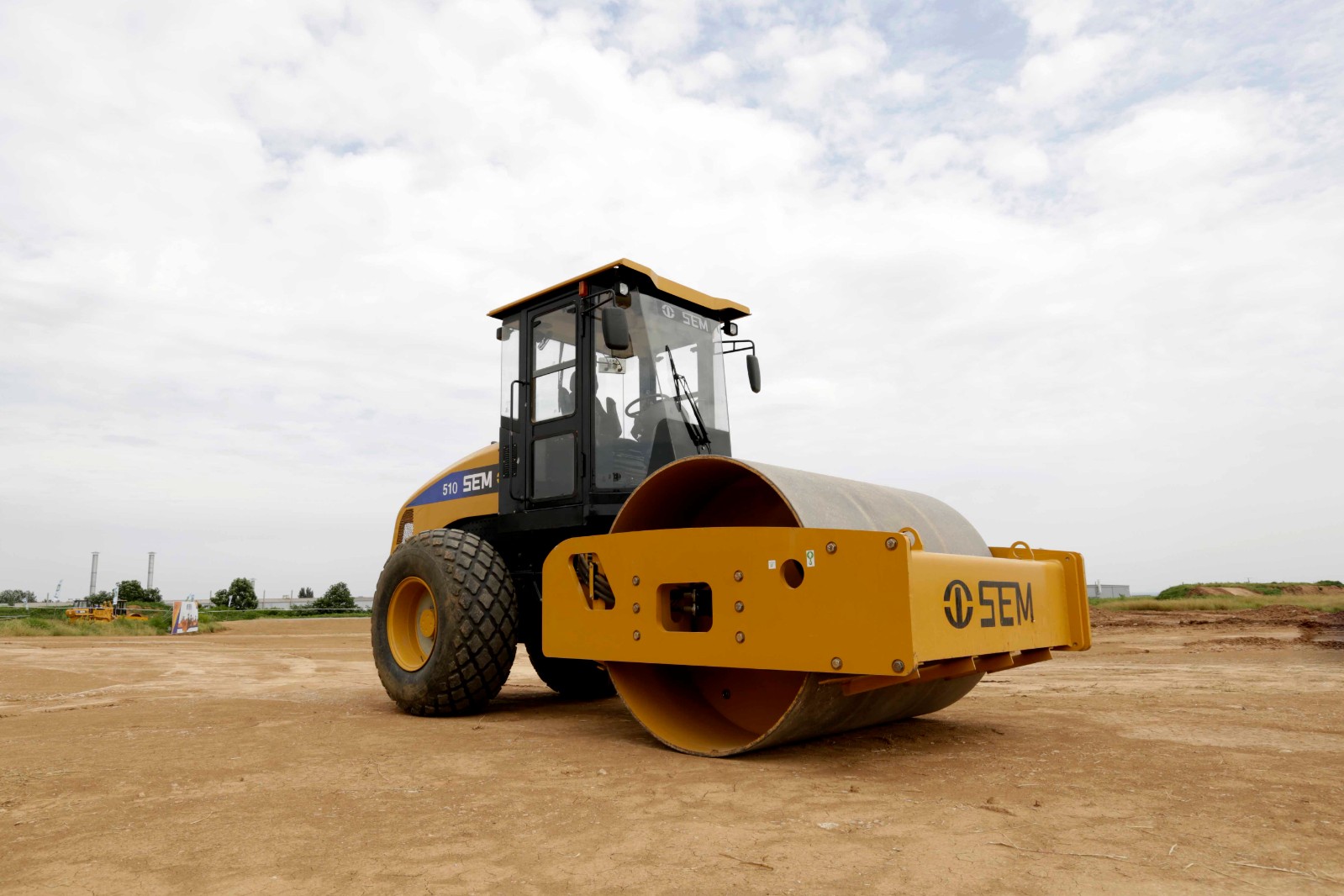

SEM510_2

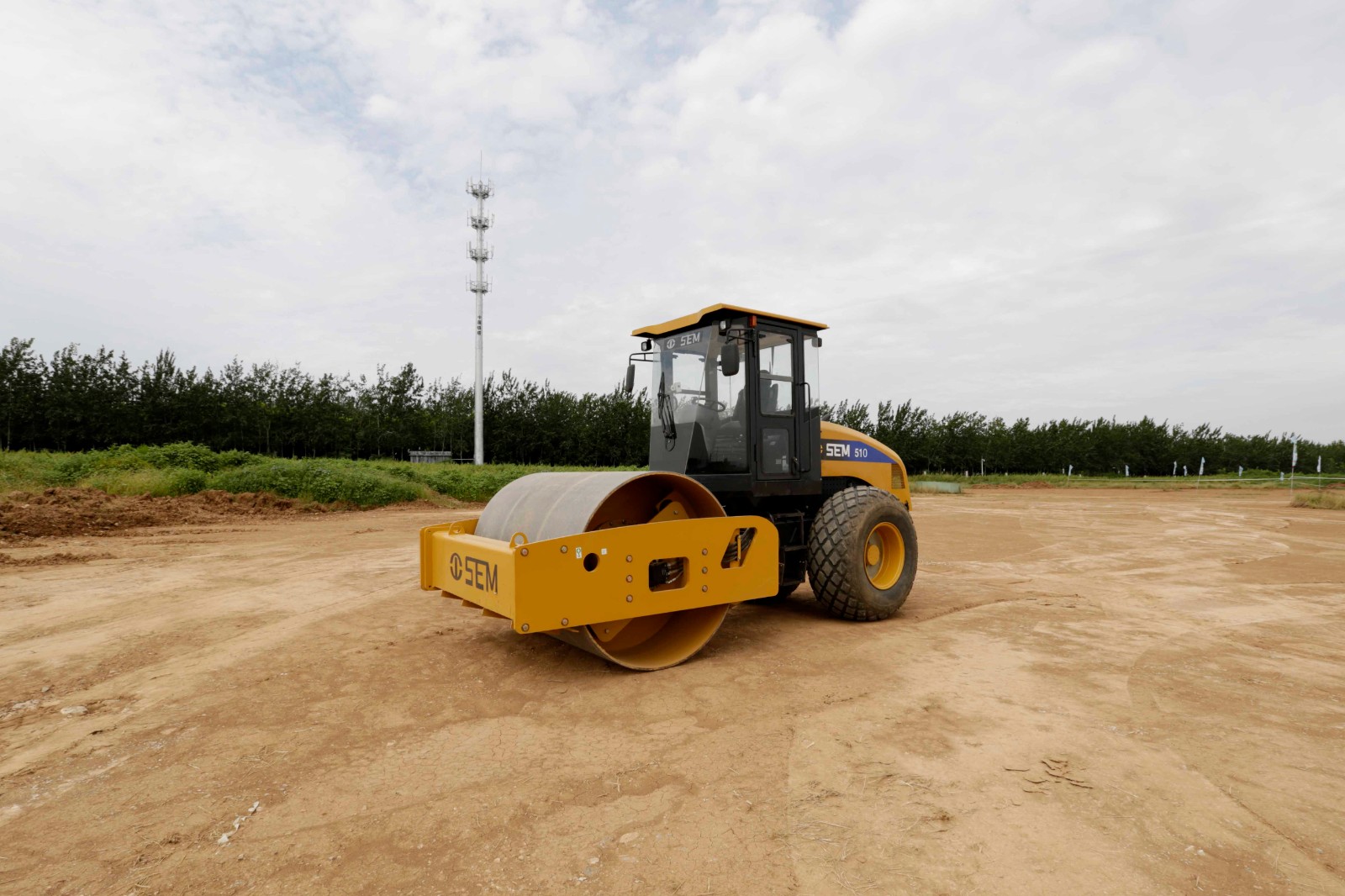

SEM510_3

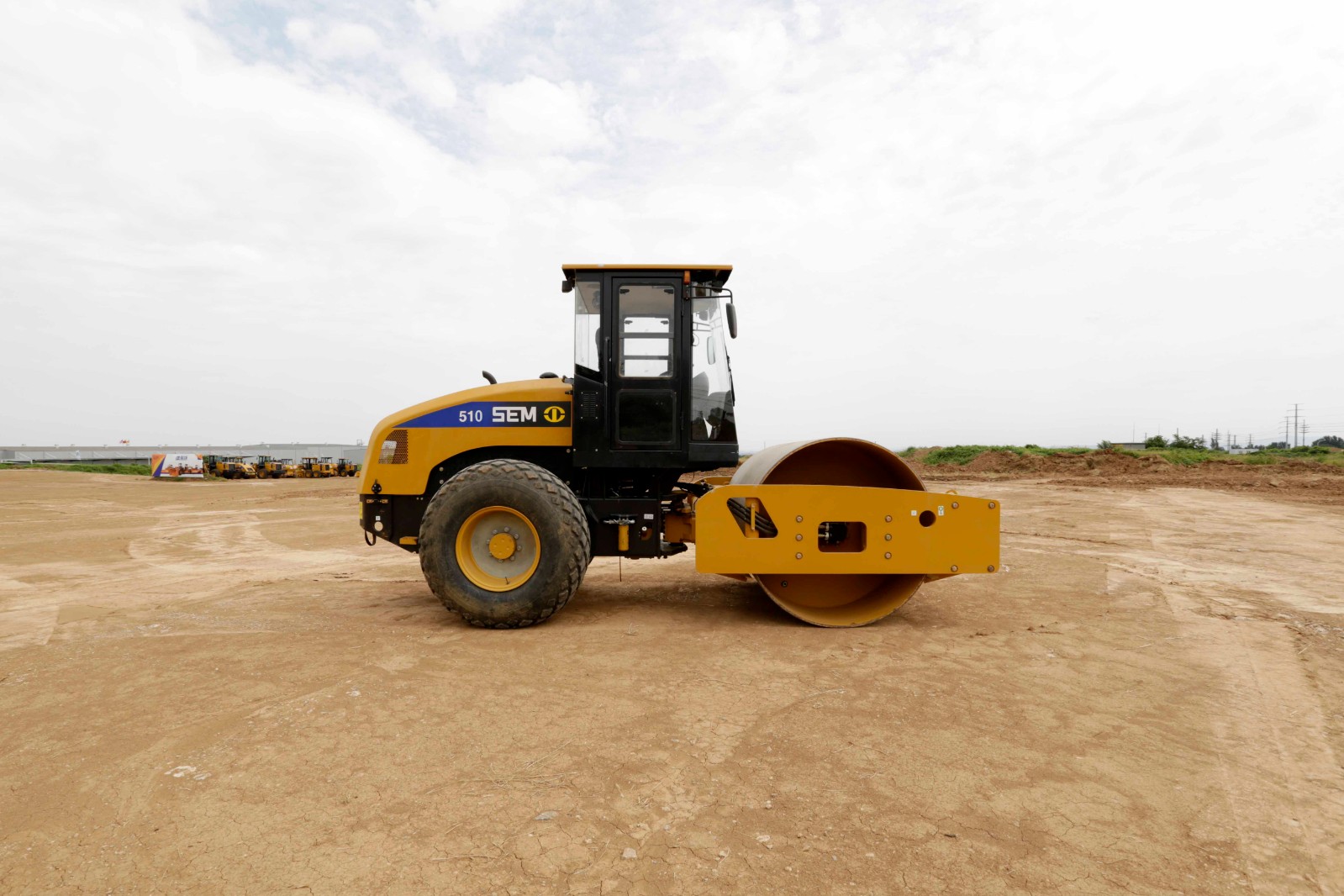

SEM510_4
