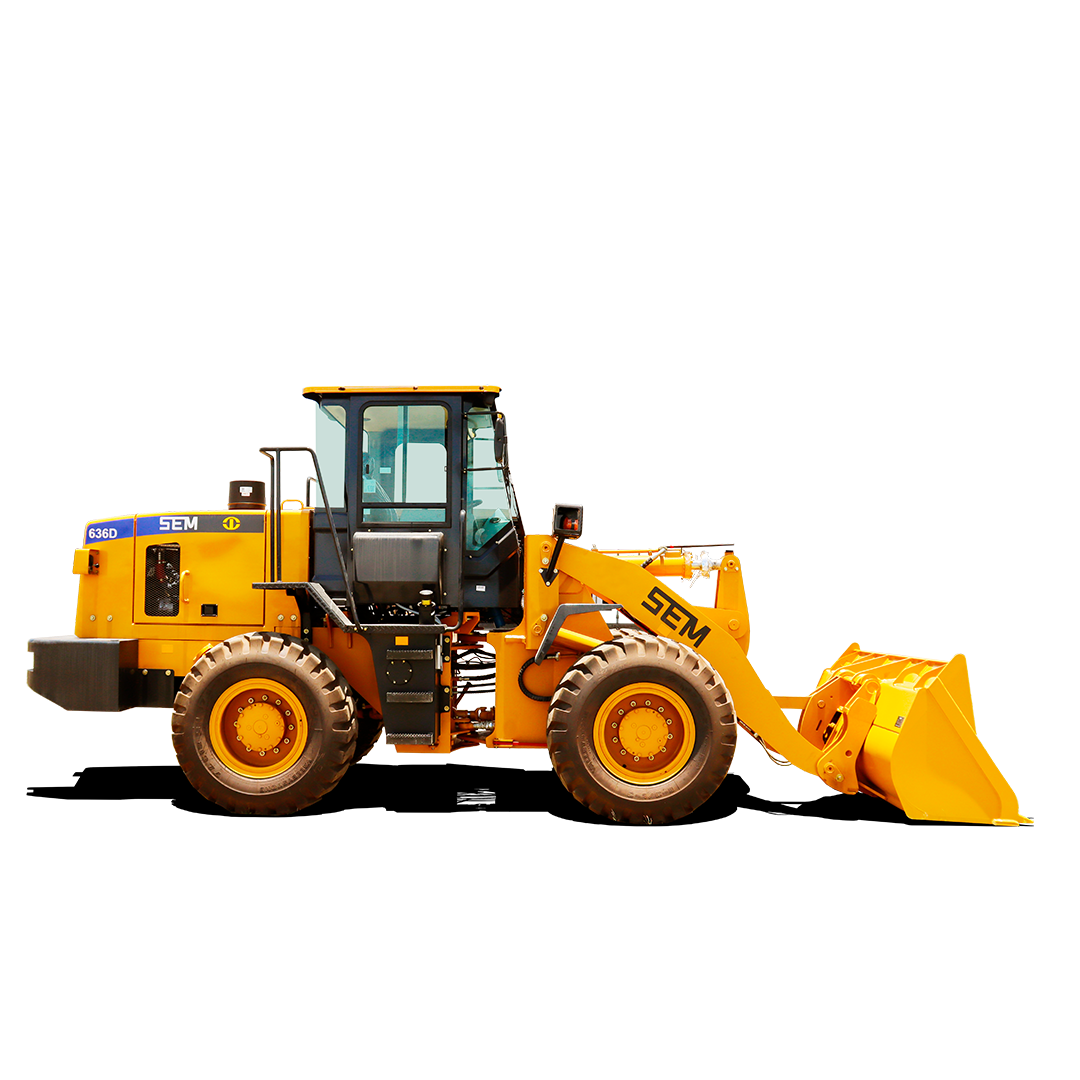

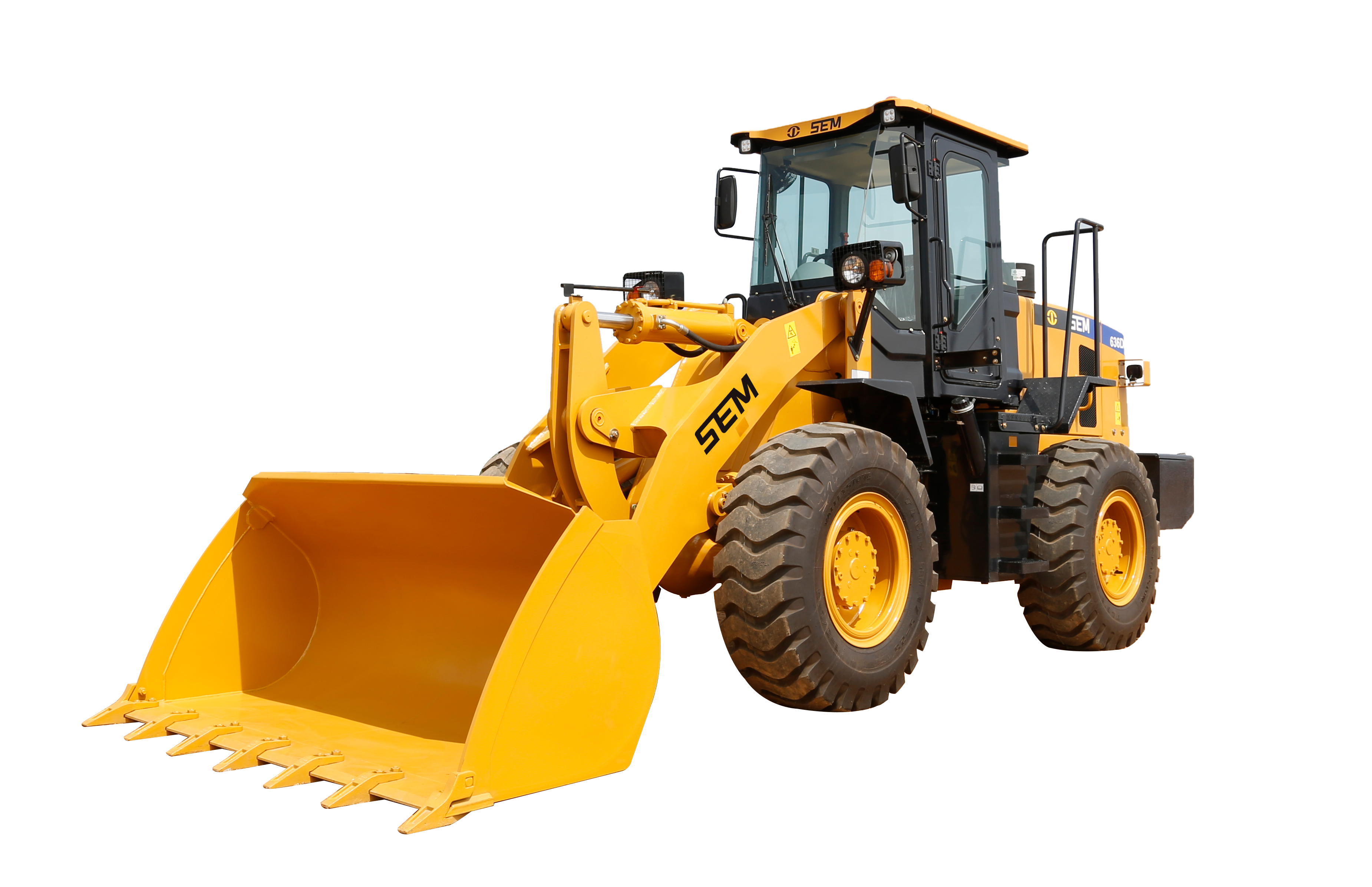

SEM636D
- KeySpecification
- Advantage
- Application
- Rated Payload ： 3,000 kg
- Operating Weight with Standard Bucket ： 10,280 kg
- Bucket Capacity ： 1.4-2.5 m³
- High Productivity
- Best-in-class Reliability and Durability
- Excellent Fuel Economy
- Outstanding Operator Comfor
- Railway / Highway / Airport
- Port
- Quarry
- Municipal Construction
- Agriculture
- Water Conservancy / Hydropower
- Waste
- Coal
- Forestry
- Log Grapple
- Concrete
- Iron & Steel
- Feature
- Specification
- ProductComparison
- Video
- Photo
- Download Brochure
Efficient Hydraulic System
- Single pump flow shared system.
- More efficiency and larger breakout force
- Perfect match between machine speed and hydraulic system to achieve high efficiency
- Joystick hydraulic control for easy and precise contro
Operator Station
- Premium operator station with big space and superior visibility
- Patented MAC mount provides less noise and more comfort
- Adjustable suspension seat
- Sliding side window and AC with fresh air circulation provide operator comfort
- Single lever shifting is flexible and convenient
- Adjustable air flow outlet delivers better defrost performance
Reliable Drivetrain
- Countershaft transmission with upgraded core components provides high reliability
- Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
- Clutch cutoff selection switch ensures stable and safe operation
- Simply Torque convert and efficiency is high
- Shift smooth and comfortable
Advanced Cooling System
- High efficiency cooling package
- Shock pad mounts ensure reliability under severe applications
Solid Structure
- Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
- Performance Series (PS) buckets improve loading capability
Serviceability
- System pressure test ports are standard
- Big angle engine hood side open door provides easy service access
- Torque convertor is isolated from transmission making it easy to service
Safety
- Safety design complies with all regulatory requirements
- Caterpillar Production System (CPS) leveraged in manufacturing process
- 3-point touching design provides convenient operator entering to cabin
- Backup alarm ensures machine safety

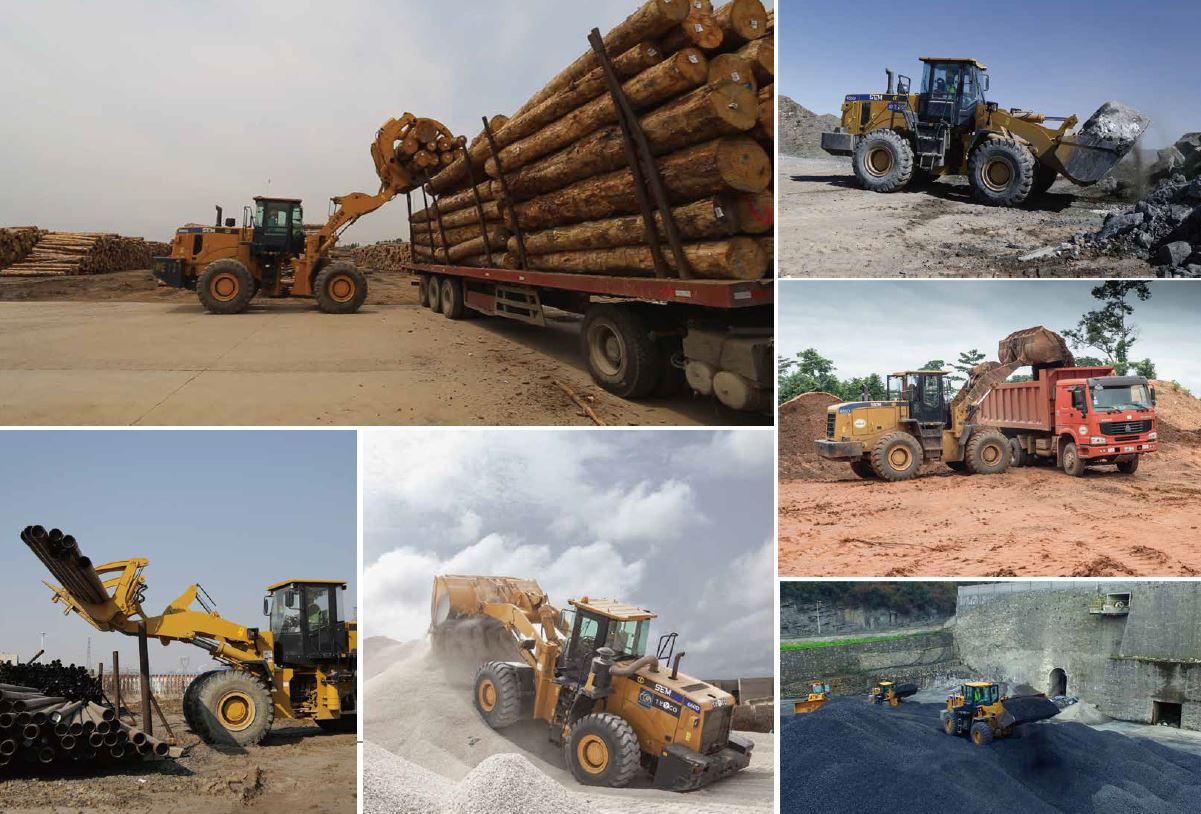

Work Tools
- It is crucial to choose suitable configurations according to the area of operation, volume and working condition, which is important to reduce additional costs, increase productivity and increase profitability. Bucket selection is also material-based.
- Download our catalog with all available tools.
| Model | |
|---|---|
| Model | SEM636D |
| Main Specifications | |
| Rated Payload | 3,000kg |
| Operating Weight with Standard Bucket | 10,280kg |
| Bucket Capacity | 1.4-2.5m³ |
| Wheel Base | 2,740mm |
| Overall Dimension (L * W * H) | 7.420*2.354*3.182mm |
| Operating Specifications | |
| Breakout Force | 113kN |
| Max. Drawbar Force | 113kN |
| B-Pin Height | 3,917mm |
| Dump Clearance | 2,994mm |
| Articulated Angle | 37° |
| Transmission | |
| Transmission Type | Countershaft, power shift |
| Transmission Gears | F4/R2 |
| Transmission Model | SEM TR100 |
| Forward I/Reverse I | 7.9/9.7km/h |
| Forward II/Reverse II | 14.1/31km/h |
| Forward III/Reverse III | 25 km/h /NA |
| Forward IV/Reverse IV | 39 km/h /NA |
| Axle (Axle, Tire & Brakes) | |
| Main Reducer type | Spiral bevel gear,single stage |
| Final Drive Reduction Type | Planetary type,single stage |
| Rear- oscillation +/- | ±12° |
| Engine | |
| Engine Model | Wiechai WP6 |
| Rated Power | 92kW-123Hp |
| Rated Speed | 2,200r/min |
| Displacement | 6.7L |
| Emission | Tier II |
| Implement Hydraulic System | |
| Implement System Type | Pilot Control |
| Hydraulic Cycle Time | 8.3s |
| System Pressure Setting | 18MPa |
| Raise | 4.6s |
| Brake System | |
| Service Brake | Air over fluid caliper-disc |
| Parking Brake | Shoe/drum |
| Steering System | |
| System Type | Coaxial flow amplification |
| Steering Pump Type | Gear pump |
| System Pressure Setting | 14Mpa |
| Steering Angle (L/R) | 37° |
| Service Refill Capacity | |
| Fuel Tank | 160L |
| Engine Lubricating Oil | 17L |
| Cooling System | 35L |
| Hydraulic System | 95L |
| Transmission Oil | 36L |
| Differential and Final Drives | 10L*2 |
| Tires | |
| Size | 17.5-25 |
| Type | Bias |
| Layer | 14 |
| Textured Type | L3 |

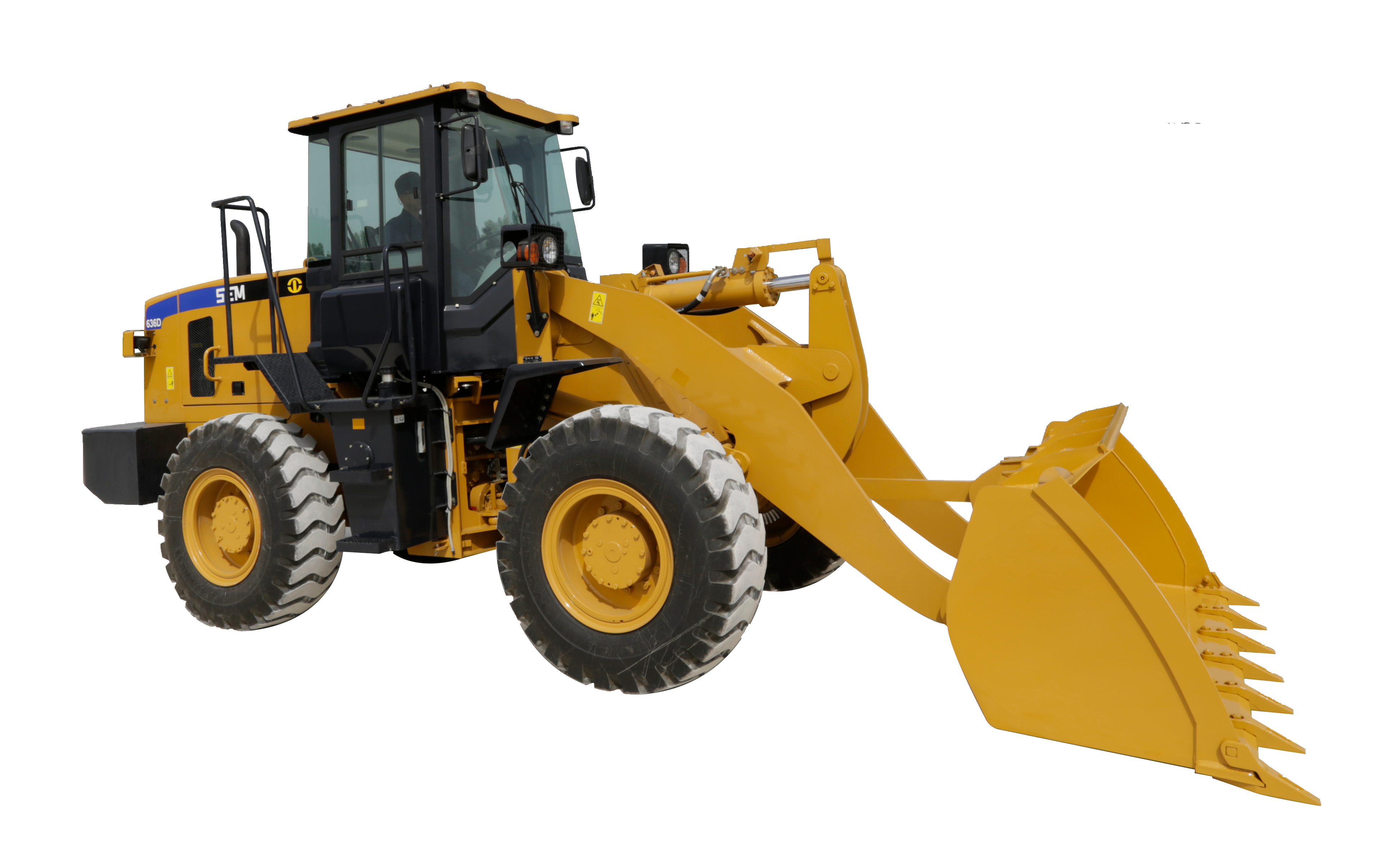

SEM636D machine styling-no background1
SEM636D machine styling1
SEM636Dmachine styling3

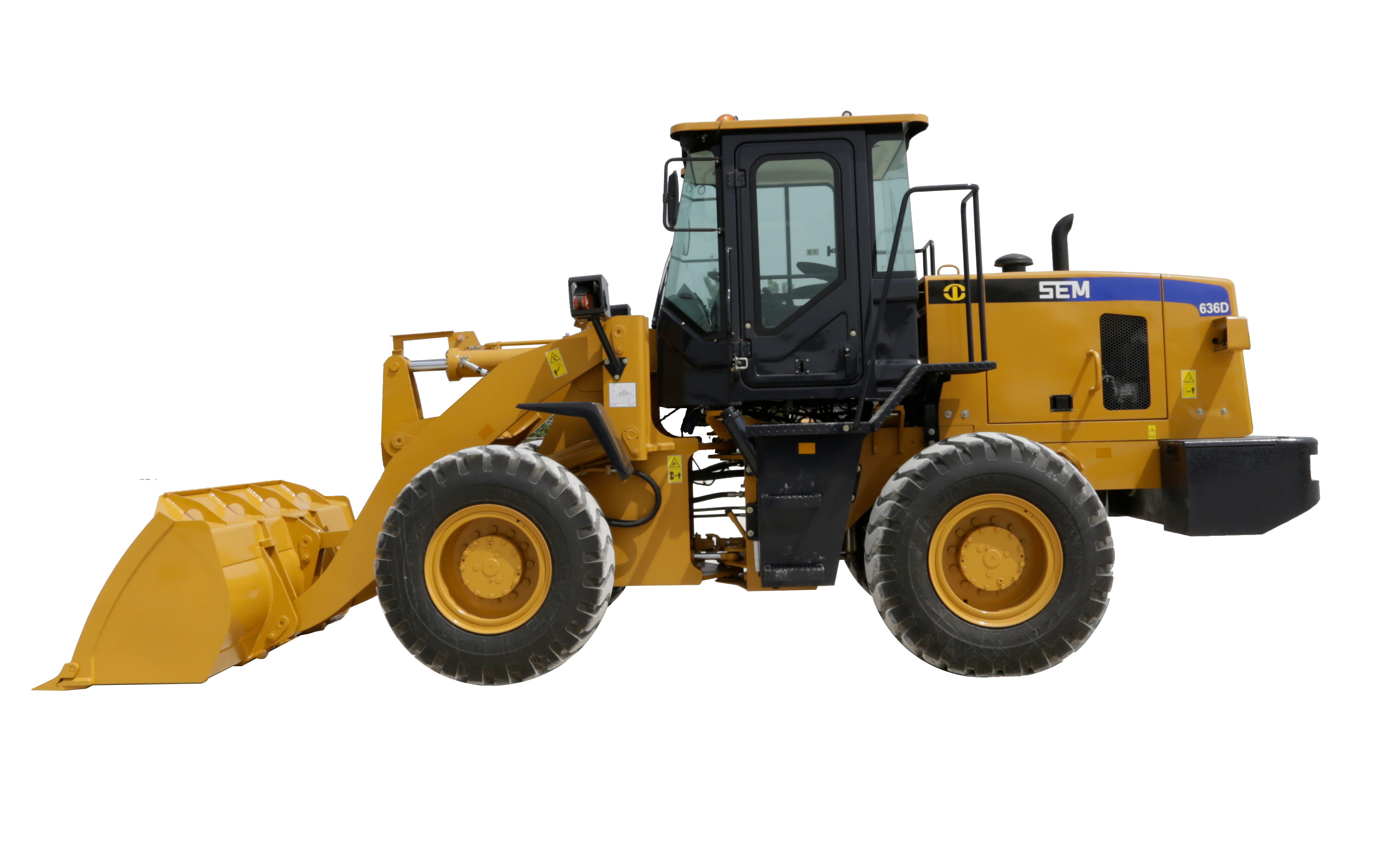

SEM636D machine styling-no background3
